Elios Basket 8 Panel Post Elios Arbora P8 – Fill with Rock & Concrete | Hold 3000kg Rock | 1.4kN/m² Snow Load
Elios Basket 8 Panel Post Elios Arbora P8 – Fill with Rock & Concrete | Hold 3000kg Rock | 1.4kN/m² Snow Load
1-2 week lead times

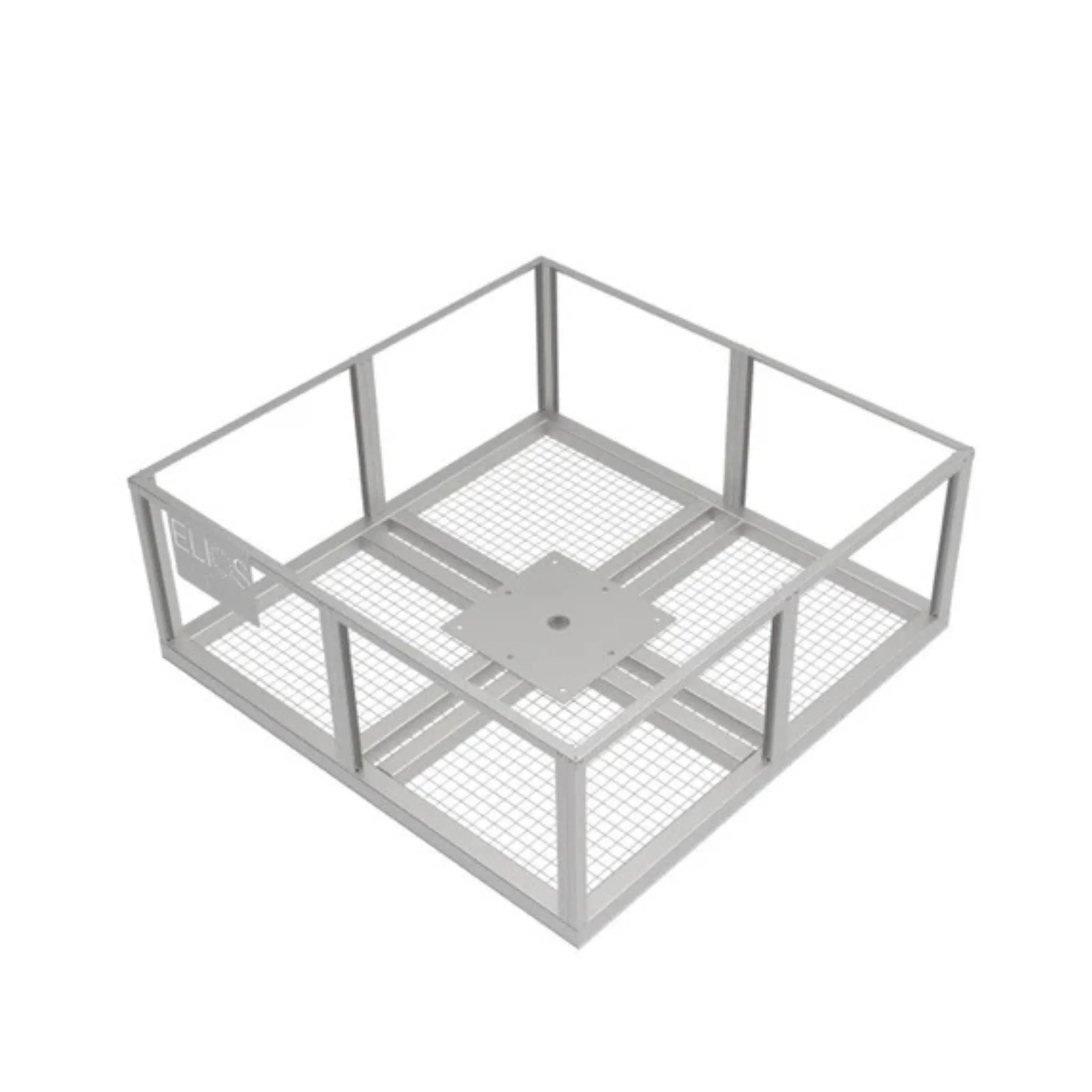

The Elios Basket 8 Panel Post provides the most suitable base that supports the Elios Arbora P8 Pole Mount System, offering durability, sturdiness, and convenience. It is composed of galvanized steel and designed to survive in tough environments, holding approximately 3000kg of rocks for exceptional stability. Simple to install, the basket includes all necessary components and can be customized with wooden boards (not supplied). To add protection, cement or cement blocks might be used. Suitable for open terrain setups, it can withstand snow loads of up to 1.4kN/m². This foundation is appropriate for residential, business, and off-grid systems, ensuring a rock-solid solar installation from beginning to end.
Key Features:
- Exceptional Strength and Durability: The Elios Basket 8 Panel Post, constructed with a galvanized steel base and post, provides exceptional endurance, offering consistent performance in difficult conditions. Its sturdy design is capable of holding up to 3000kg of rocks, ensuring a solid base to support the Elios Arbora P8 Pole Mount System.

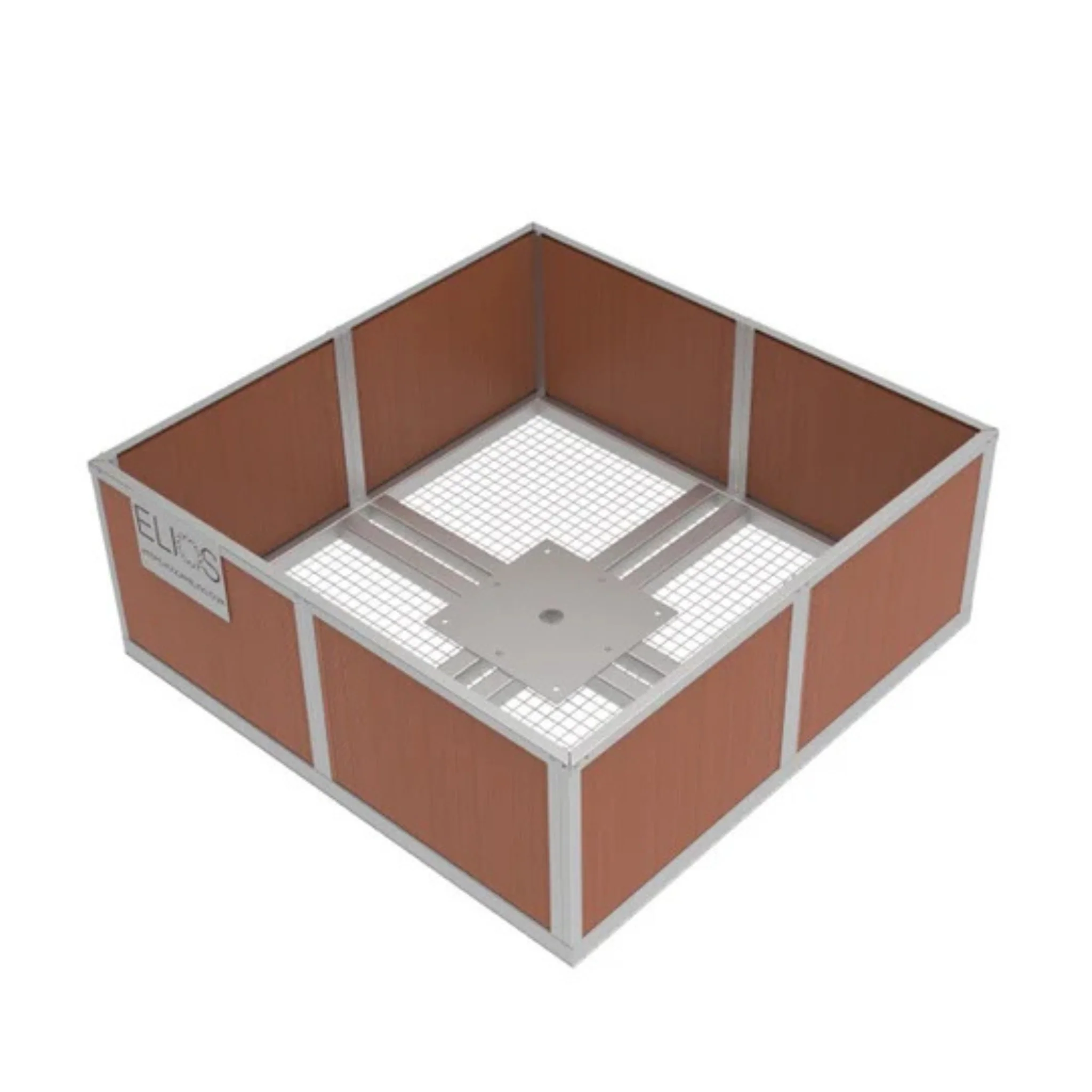

- Customizable Rock-Fill Structure: The basket structure enables easy adjustment to meet your specific expectations. Gently cover the construction with wooden boards, then cover it with rocks or cement for further stability. This adaptability provides safe installation in open terrain or similar difficult environments.
- Weather-Resistant Design: The Elios Basket 8 Panel Post boasts a snow-loading capability of approximately 1.4kN/m², making it suitable for extreme weather situations which include heavy snow and high winds. Its tough design provides long-term dependability, regardless matter the conditions.
- Complete Installation Kit: The system includes all required hardware, including the base and framework, enabling installation to be relatively easy and hassle-free. It was created for productivity, saving your time and energy while assuring a smooth installation experience.
- Versatile Applications: The Elios Basket 8 Panel Post is a space-saving option for open terrain solar energy installations, whether residential, commercial, or off-grid. Its modest yet strong structure serves as ideal over a wide range of solar applications, providing reliable performance and durability.
Product Specifications:
- Install Site: Open terrain
- Module Type: Used to install the Elios Arbora P8 post
- Weight Capacity: Fill with 3000 kg of rocks
- Base Size: 2000 × 2000 × 784.50 mm (78.74 × 78.74 x 30.89 in)
- Weight (exclude planks): 181 kg (399 lbs)
- Snow Load: 1.4kn/m2
- Material: Galvanized steel base and post
- Retail Box Dimensions (LxWxD): 2000 × 2000 x 210 mm (78.7 x 78.7 x 8.3 in)
- Total Box Weight: 201 kg (442 lbs)
Download:
