Power your home or cabin with confidence using Maple Leaf's ESS Backup Kits featuring the Luxpower SNA-US-12K Inverter. These kits are available with your choice of high-capacity Moose 48V 280Ah or modular Beaver 48V 100Ah LiFePO4 batteries. Whether you need a compact backup system or a scalable off-grid solution, each bundle delivers dependable energy storage, smart inverter functionality, and UL-certified safety.

KEY FEATURES (ALL KITS):

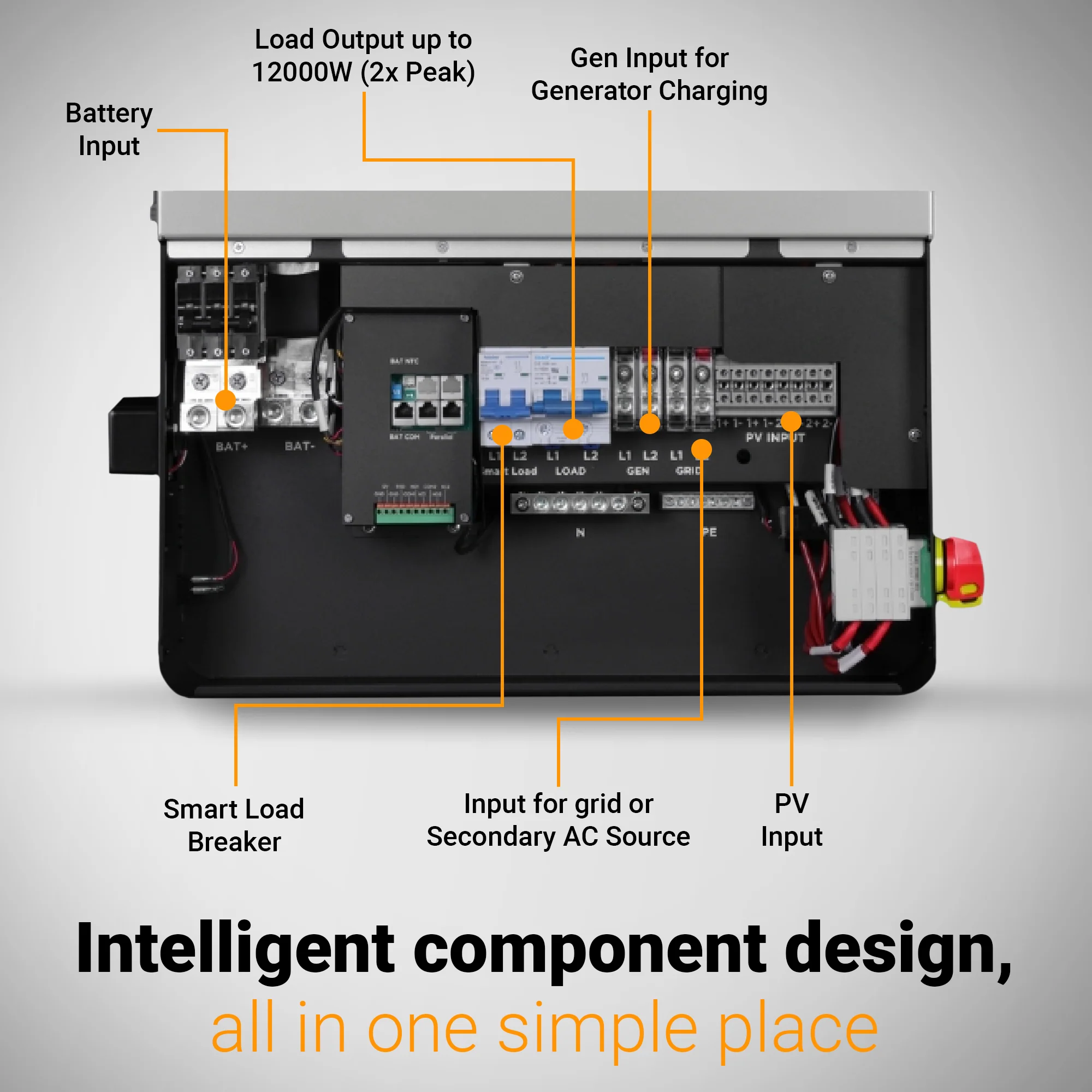

• Luxpower SNA-US-12K Inverter: 12kW split-phase inverter with 250A battery support, dual MPPTs, AFCI protection, generator port, smart cooling, and WiFi/CAN/RS485 communication.

• Flexible Power Modes: Supports off-grid, grid-tied, and hybrid use with time-of-use, peak shaving, and load management.

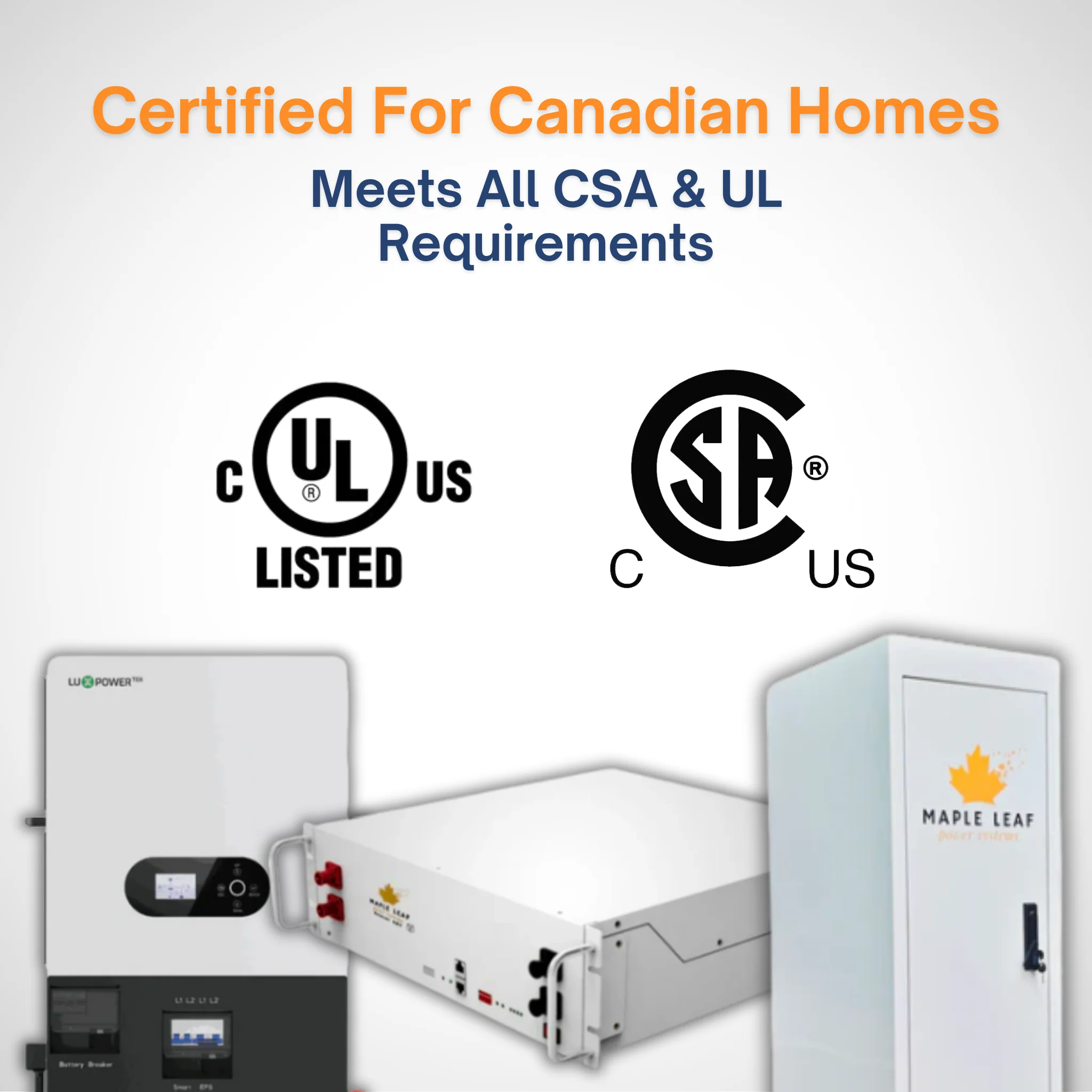

• Certified for Safety: UL9540, UL9540A, UL1973 compliant for North American code requirements.

• Customizable Storage: Choose high-capacity Moose or modular Beaver batteries with scalable designs and plug-and-play installation.

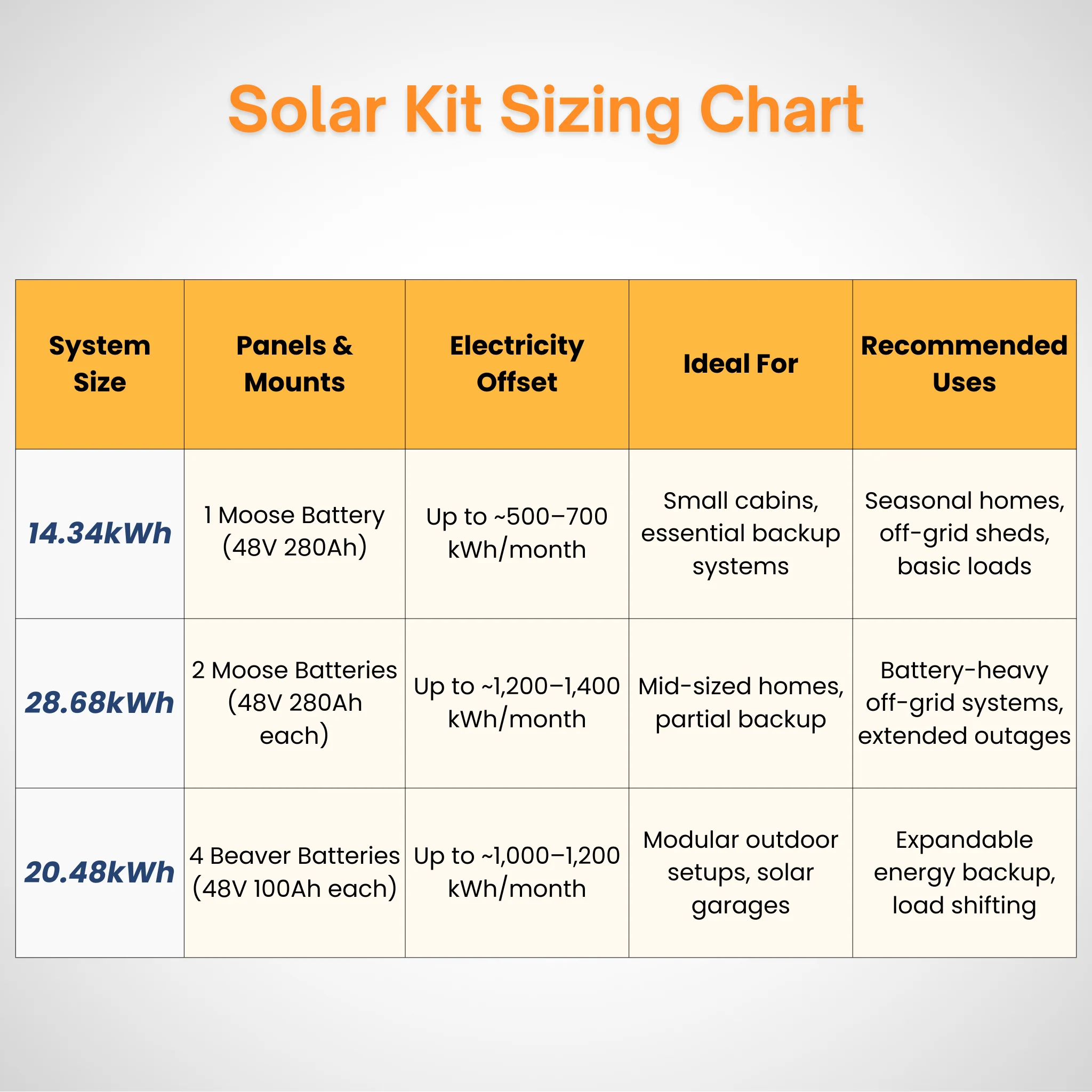

KIT CONTENTS:

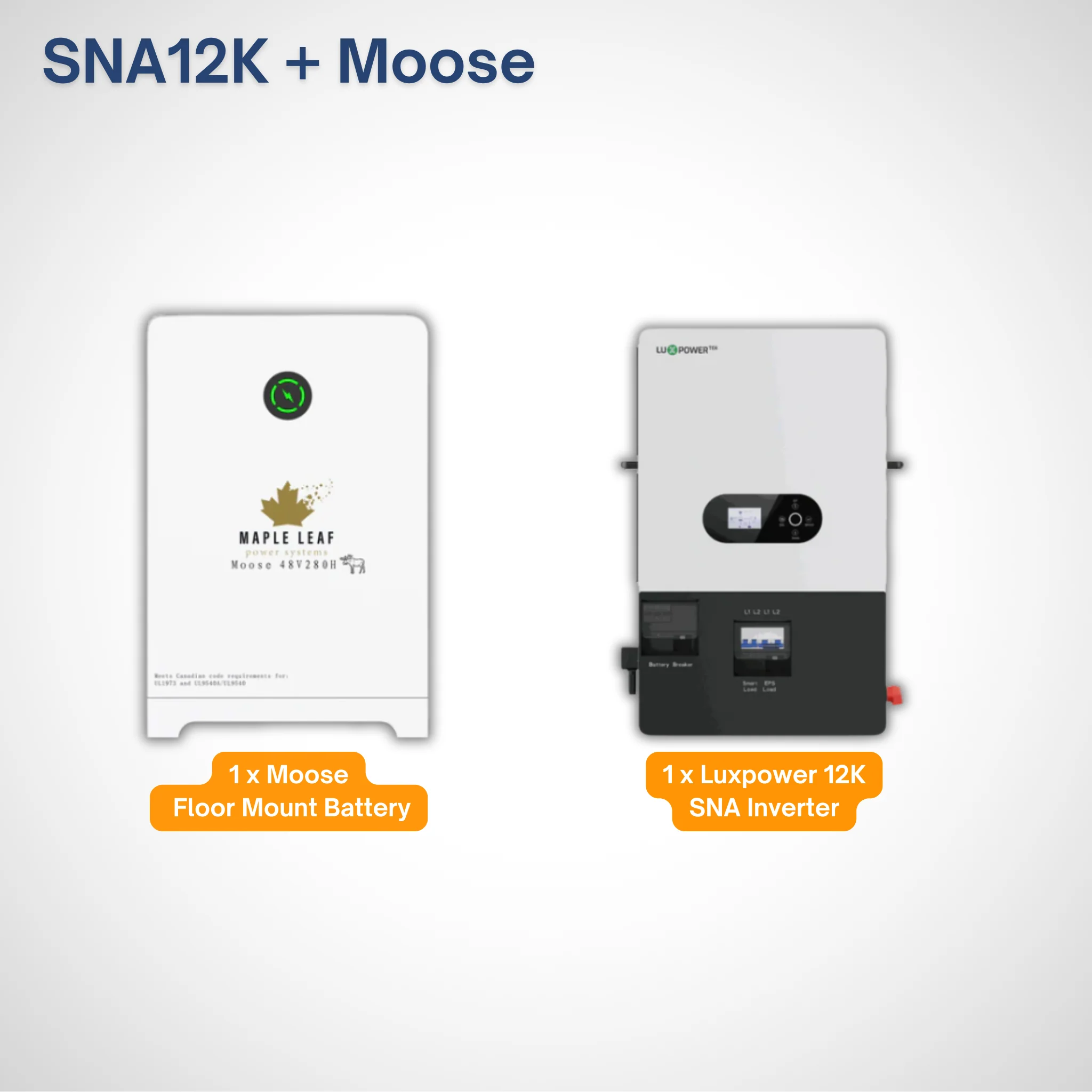

Kit 1: SNA 12K + Moose (14.34kWh Capacity)

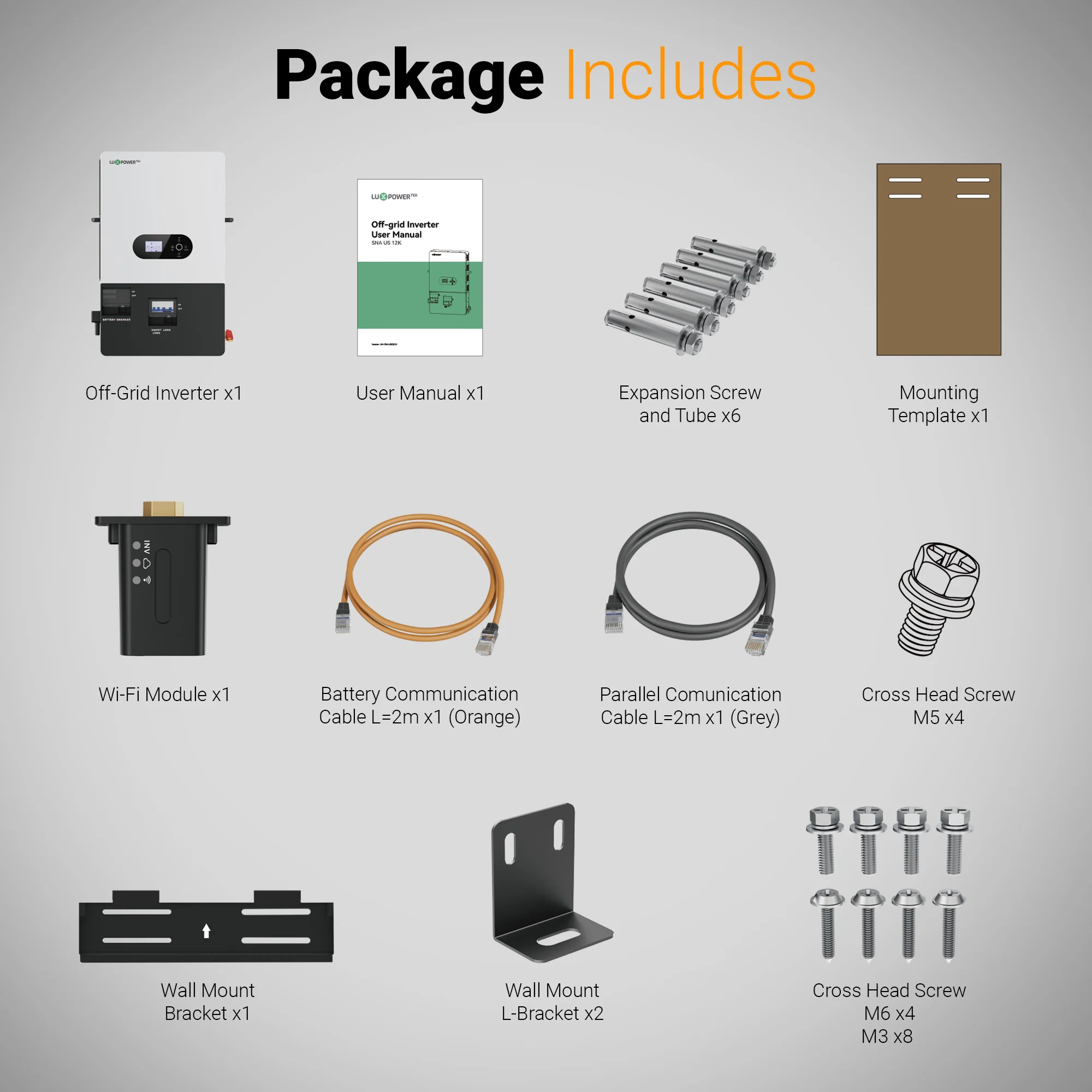

• 1 × Luxpower SNA 12K Inverter

• 1 × Moose Floor Mount 48V 280Ah Battery

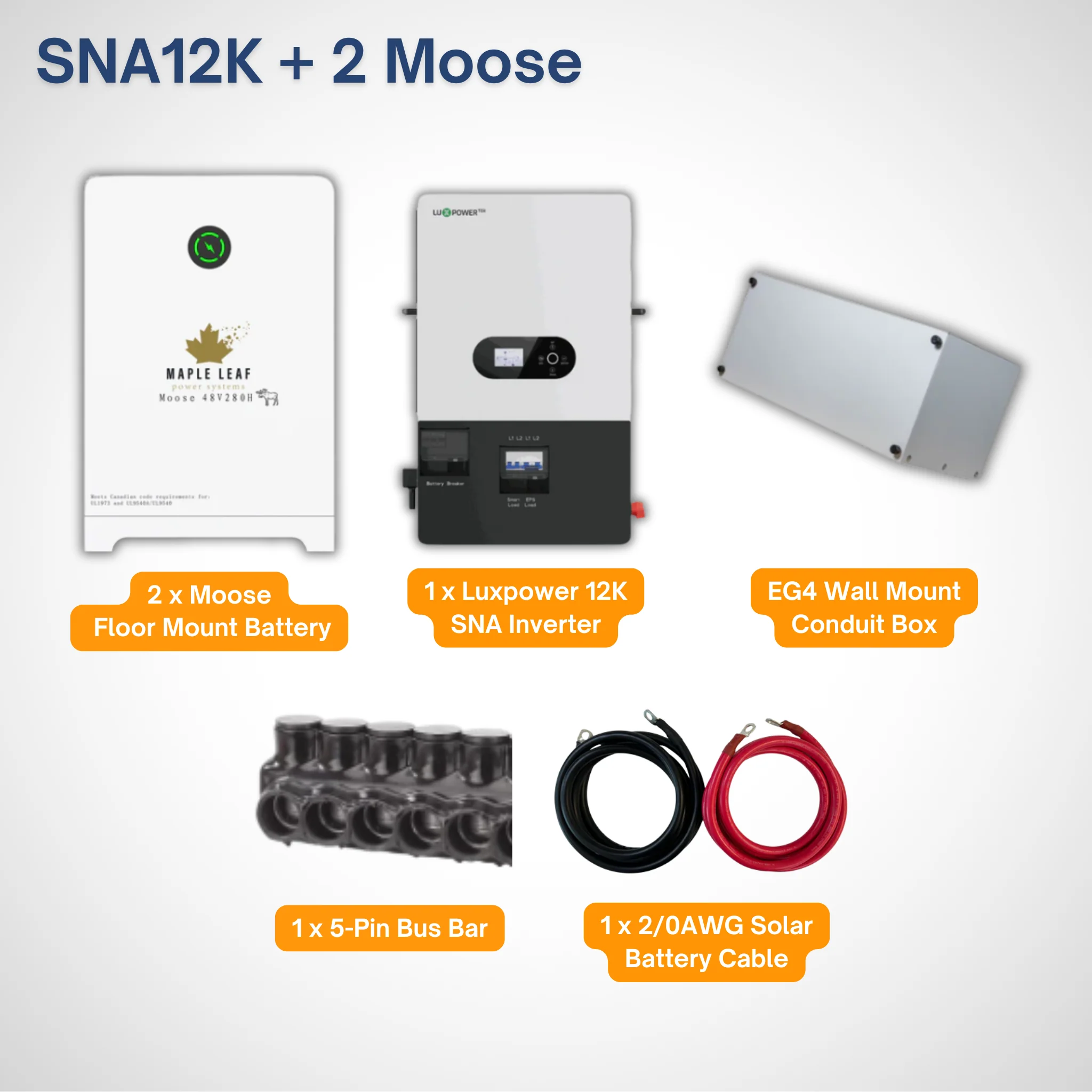

Kit 2: SNA 12K + 2 Moose (28.68kWh Capacity)

• 1 × Luxpower SNA 12K Inverter

• 2 × Moose Floor Mount 48V 280Ah Batteries

• 1 × 5 Pin Bus Bar

• 1 × 2/0 AWG Battery Cable (10ft Set)

• 1 × EG4 Wall Mount Conduit Box

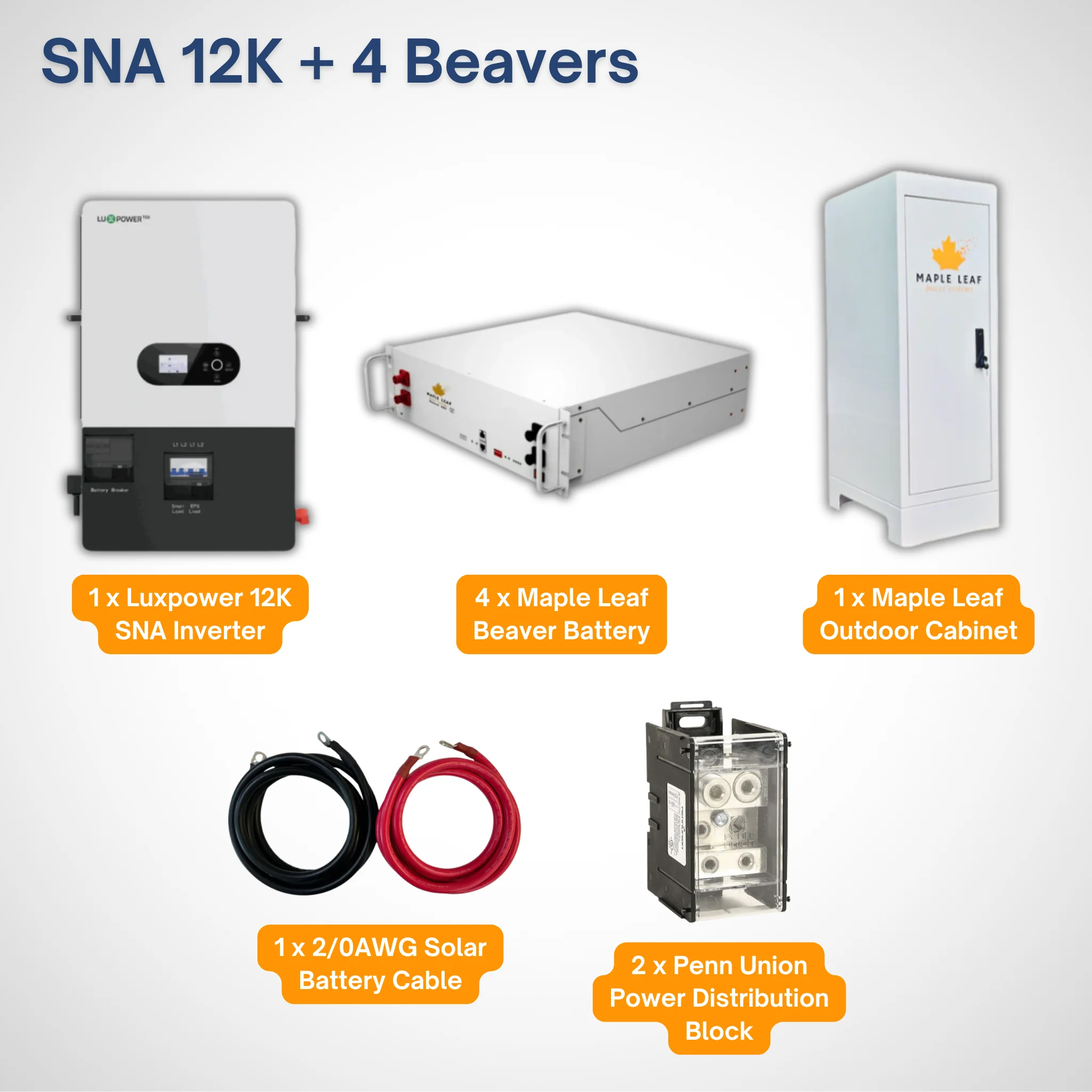

Kit 3: SNA 12K + 4 Beavers (20.48kWh Capacity)

• 1 × Luxpower SNA 12K Inverter

• 4 × Maple Leaf Beaver 48V 100Ah Batteries

• 1 × Maple Leaf Mountie Outdoor Cabinet

• 1 × 2/0 AWG Battery Cable (10ft Set)

• 4 × Maple Leaf Battery Cable Kits

• 2 × SAPUBDB4 Distribution Bars

COMPONENT SPECIFICATIONS

Specification	Details

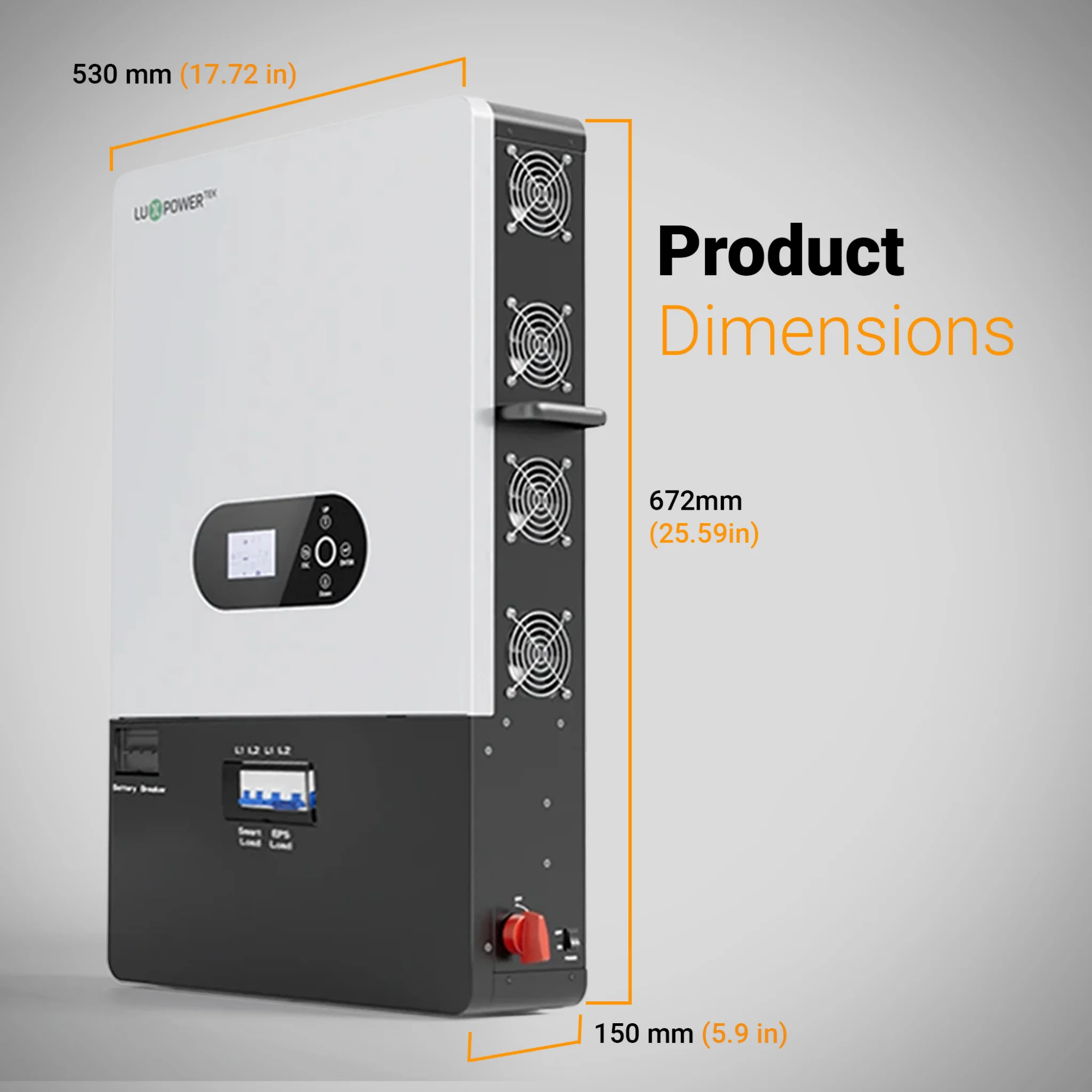

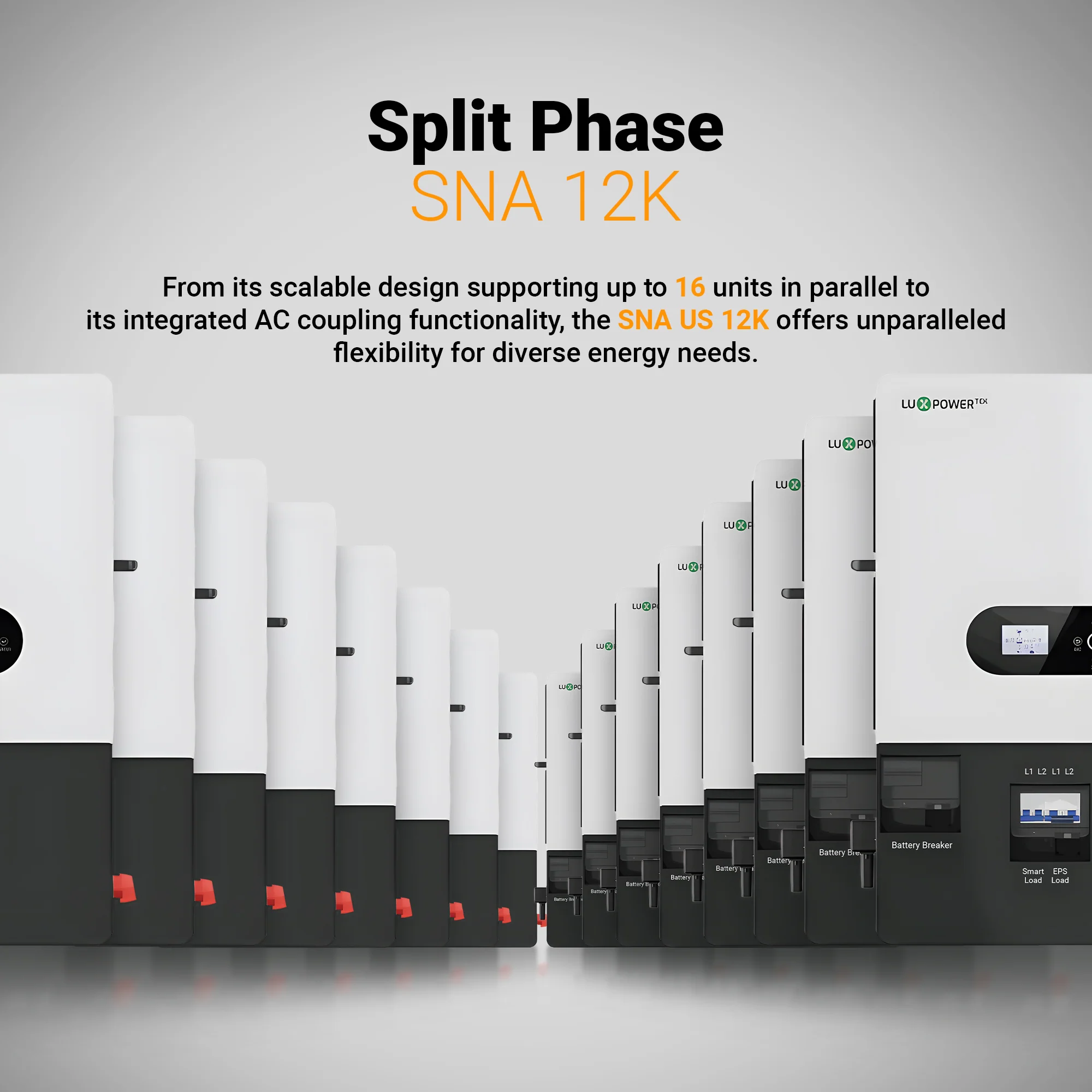

Luxpower SNA-US-12K Inverter
Output	240/120V split-phase
Max Solar Input	24kW (dual MPPT)
Max Charge/Discharge	250A
Communication	RS485 / CAN / WiFi
Certifications	UL9540, UL9540A, CSA 22.2, UL1741
Dimensions	530 × 830 × 150 mm (20.8 × 32.7 × 5.9 in)
Weight	45 kg (99.2 lbs)

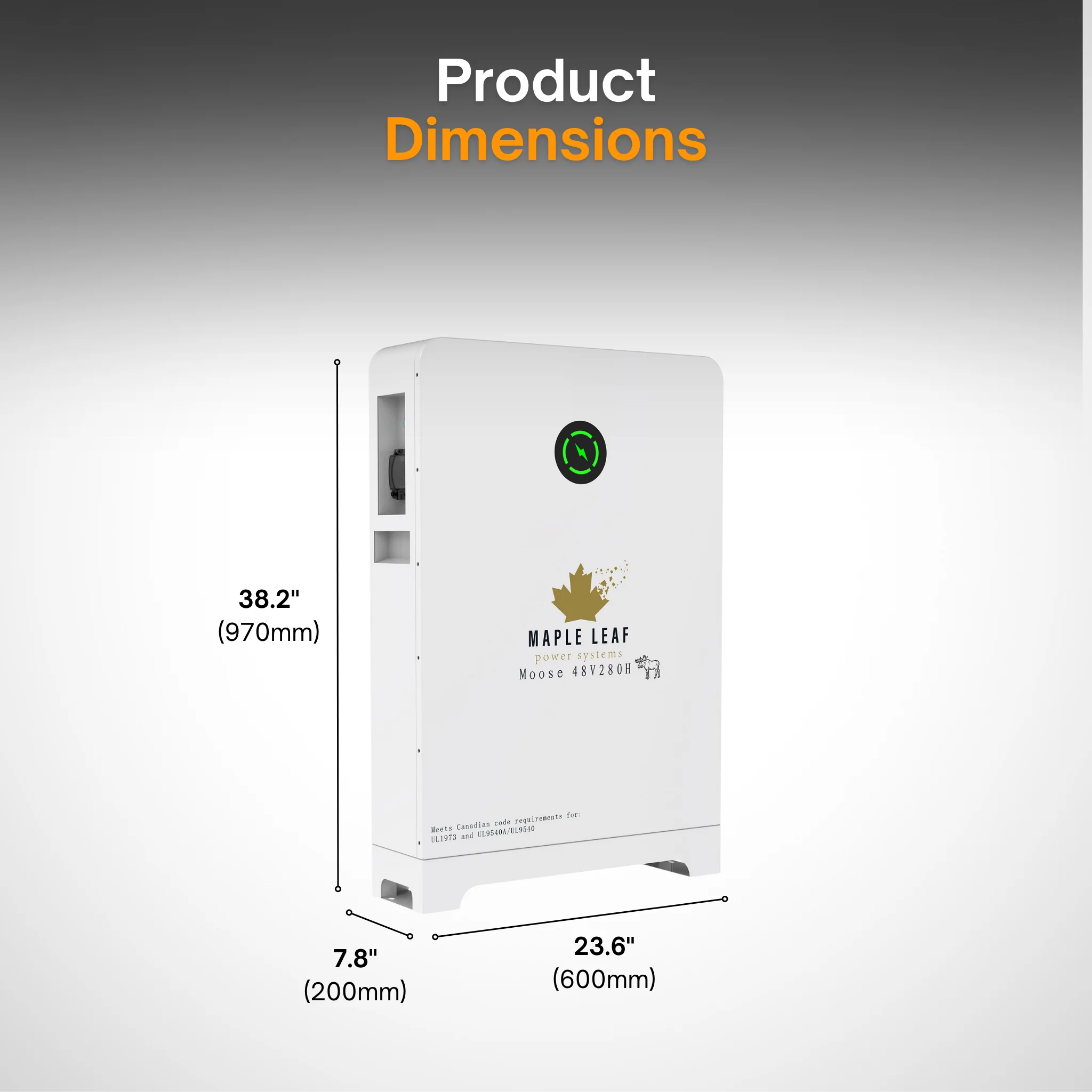

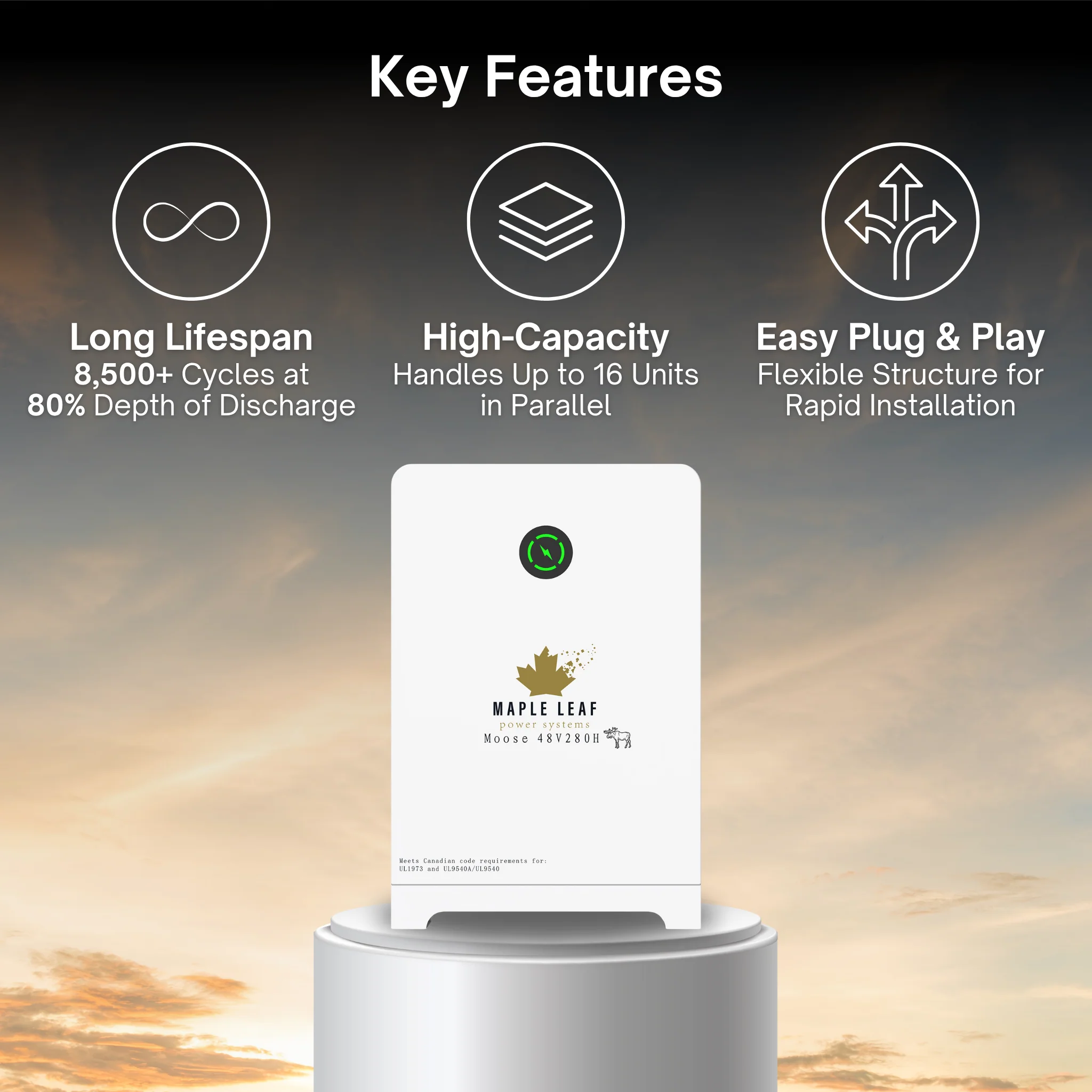

Moose 48V 280Ah Battery
Nominal Energy	14.34kWh
Chemistry	LiFePO₄
Cycle Life	≥8500 cycles at 80% DoD
Communication	CAN, RS485, WiFi
Certifications	UL9540, UL9540A, UL1973, IEC62619
Dimensions	970 × 600 × 200 mm (38.2 × 23.6 × 7.8 in)
Weight	128.5 kg (283 lbs)

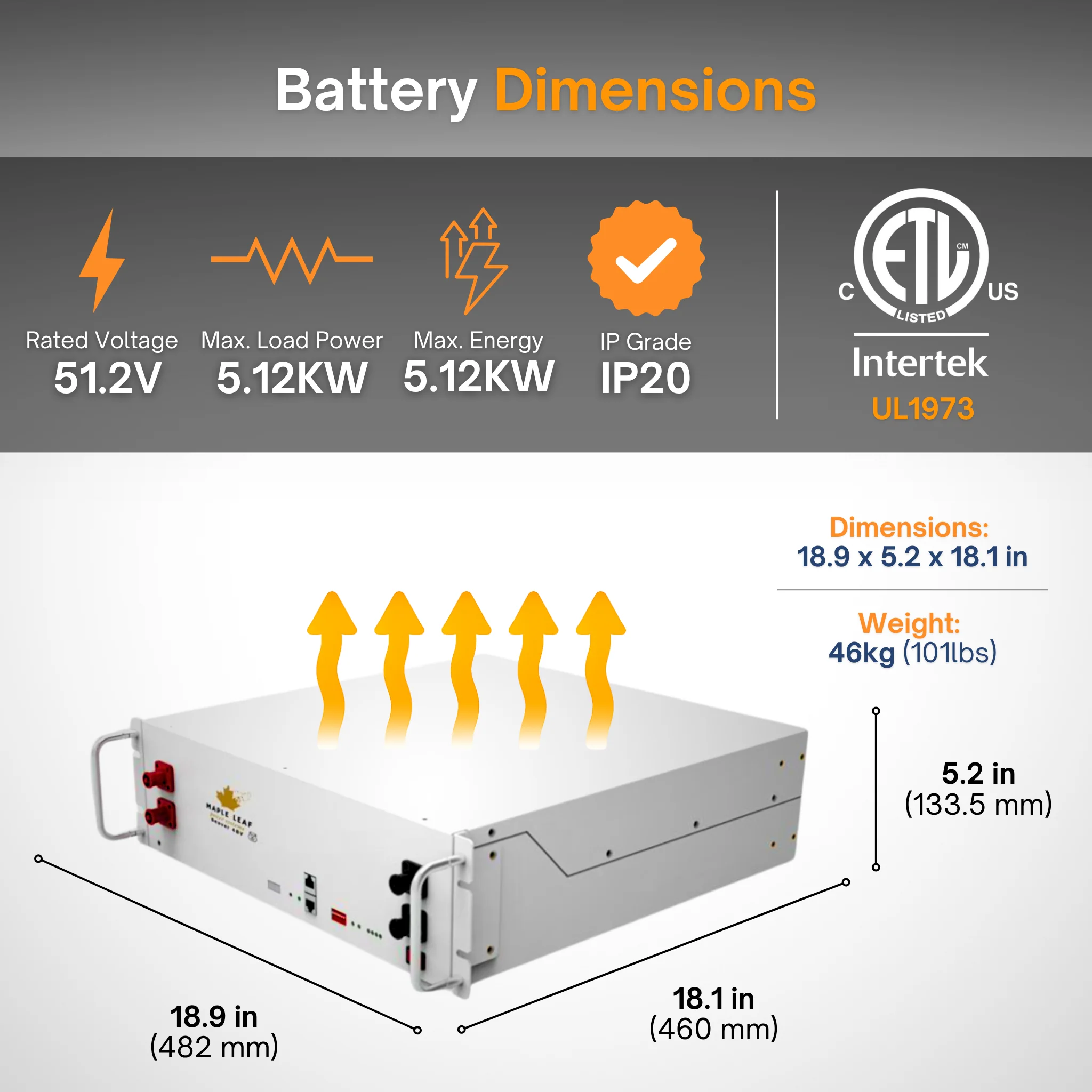

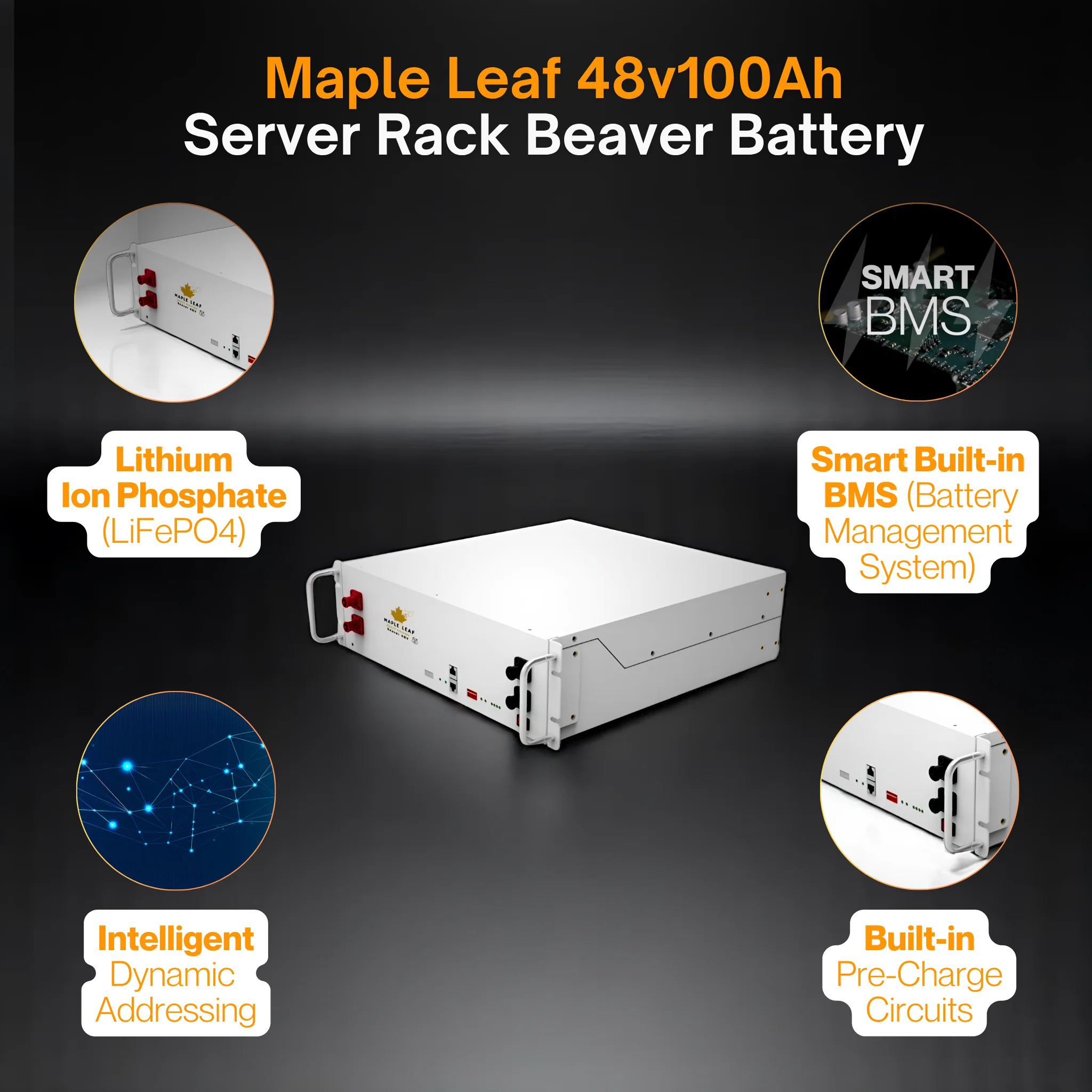

Beaver 48V 100Ah Battery
Nominal Energy	5.12kWh per unit
Chemistry	LiFePO₄
Cycle Life	≥6000 cycles
Communication	CAN, RS485
Certifications	UL9540, UL9540A, UL1973, CE, UN38.3
Dimensions	482 × 133.5 × 460 mm (18.9 × 5.2 × 18.1 in)
Weight	46 kg (101 lbs)

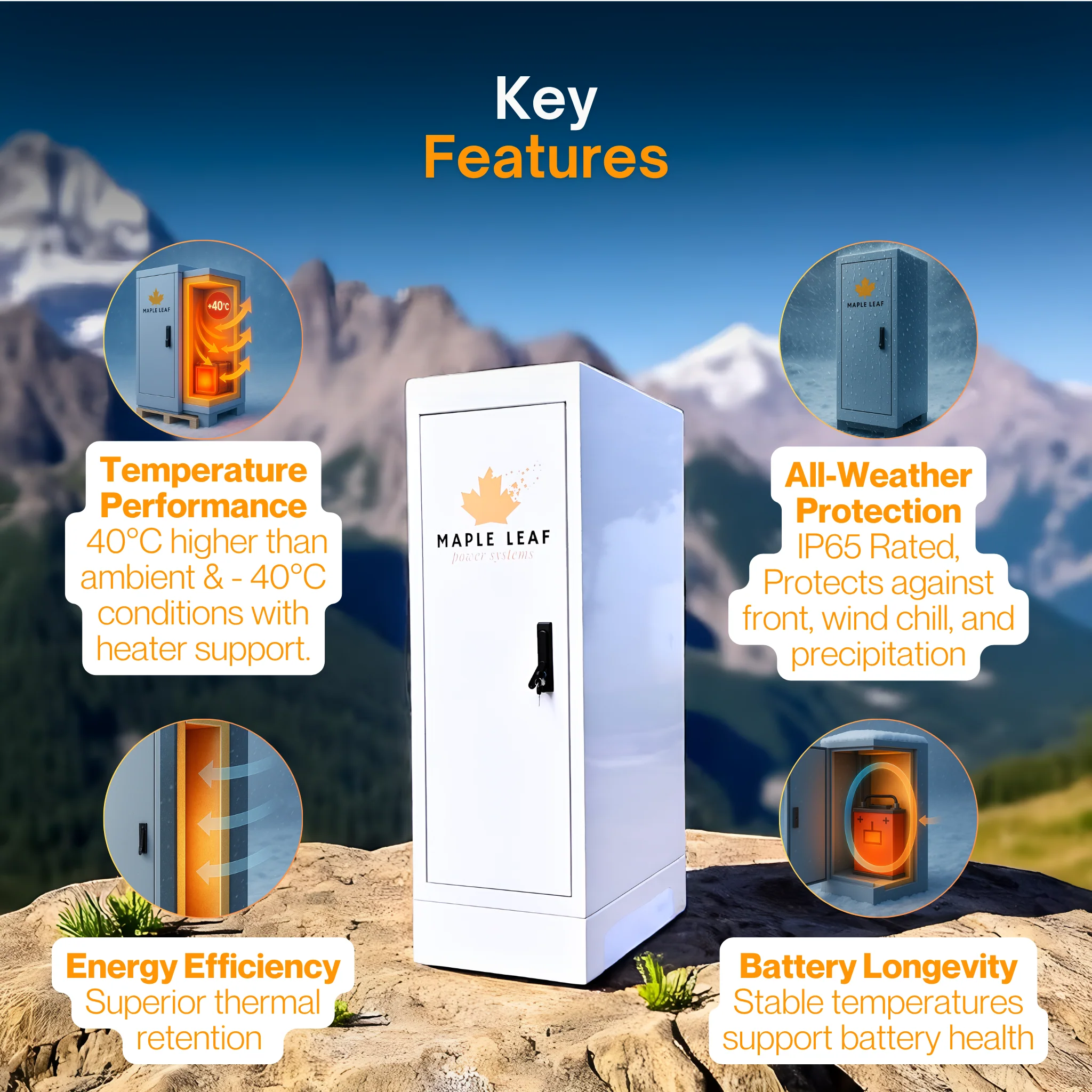

Mountie Outdoor Battery Cabinet
Capacity	Up to 6 Beaver batteries
Insulation	EPS with R-value ~R5.6–R6.6
IP Rating	IP65
Dimensions	605 × 645 × 620 mm (23.8 × 25.4 × 24.4 in)
Weight	28 kg (62 lbs)
Temperature Performance	Maintains internal temps in -40°C to +55°C conditions
