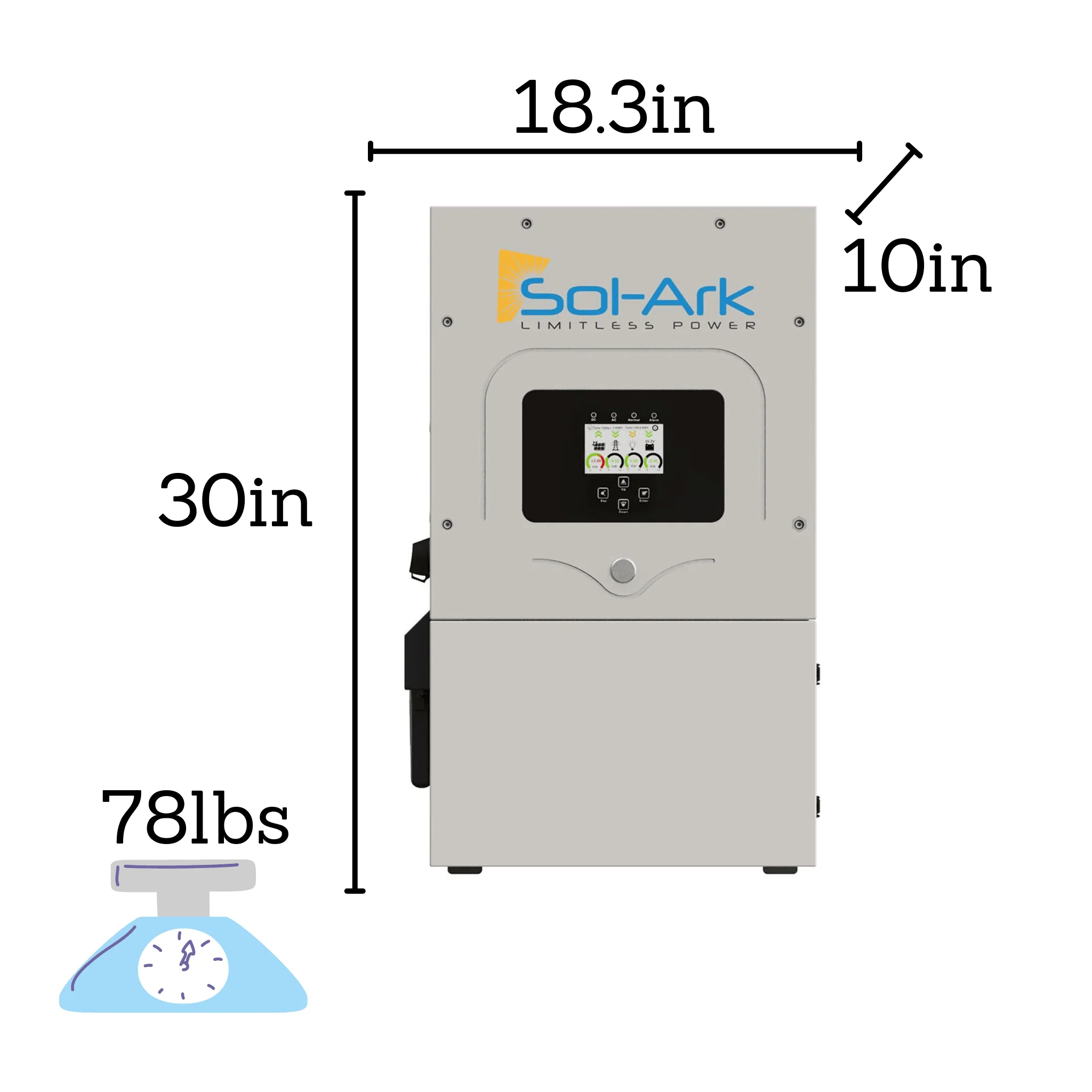

Sol-Ark 5K Hybrid - All In One Inverter With Max PV Of 6500w
Sol-Ark 5K Hybrid All-In-One Canada
DOWNLOADS:

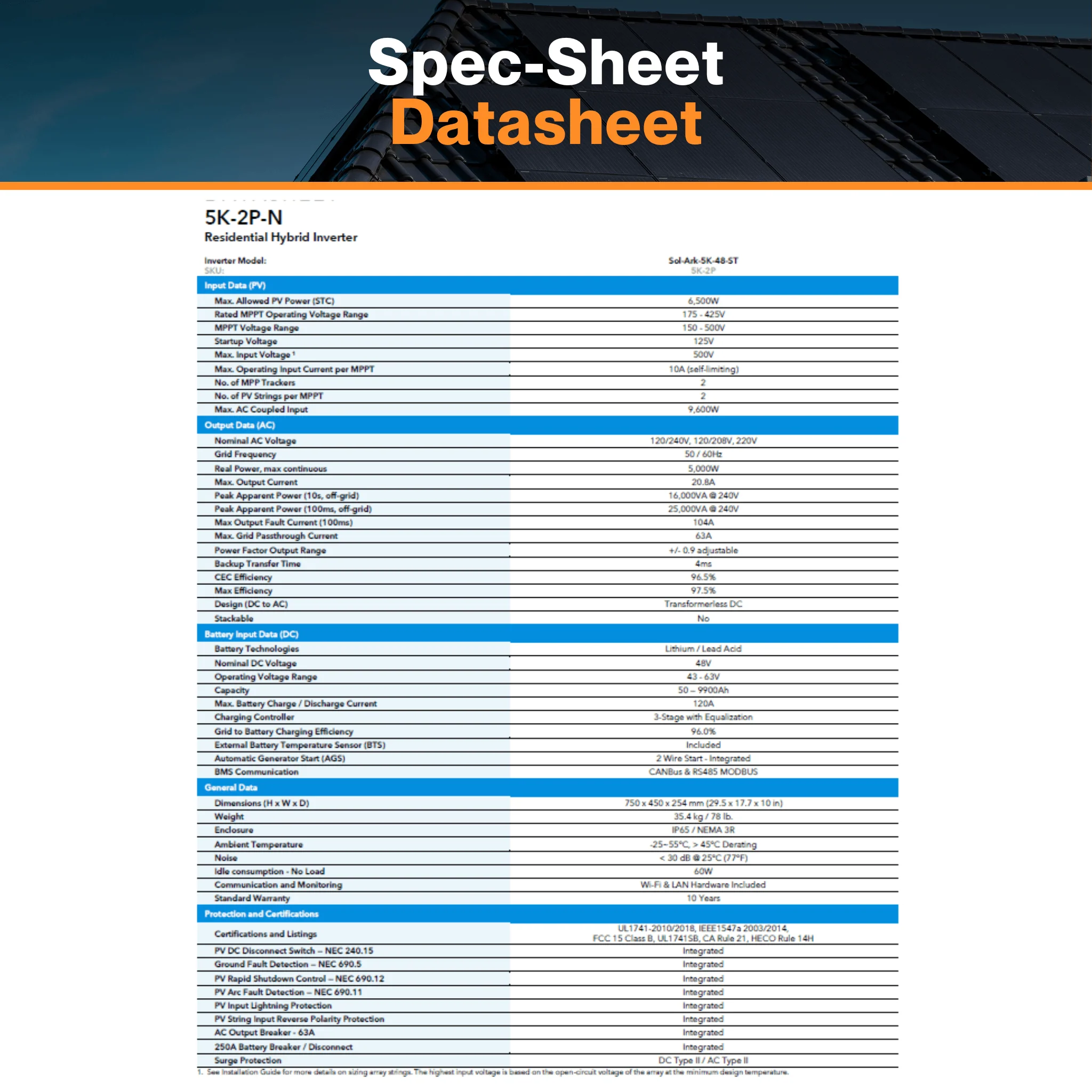

- Download the Datasheet
- Download the Installation & User Manual
- Download the Sol-Ark Inverter Battery Communications & Installation Guide

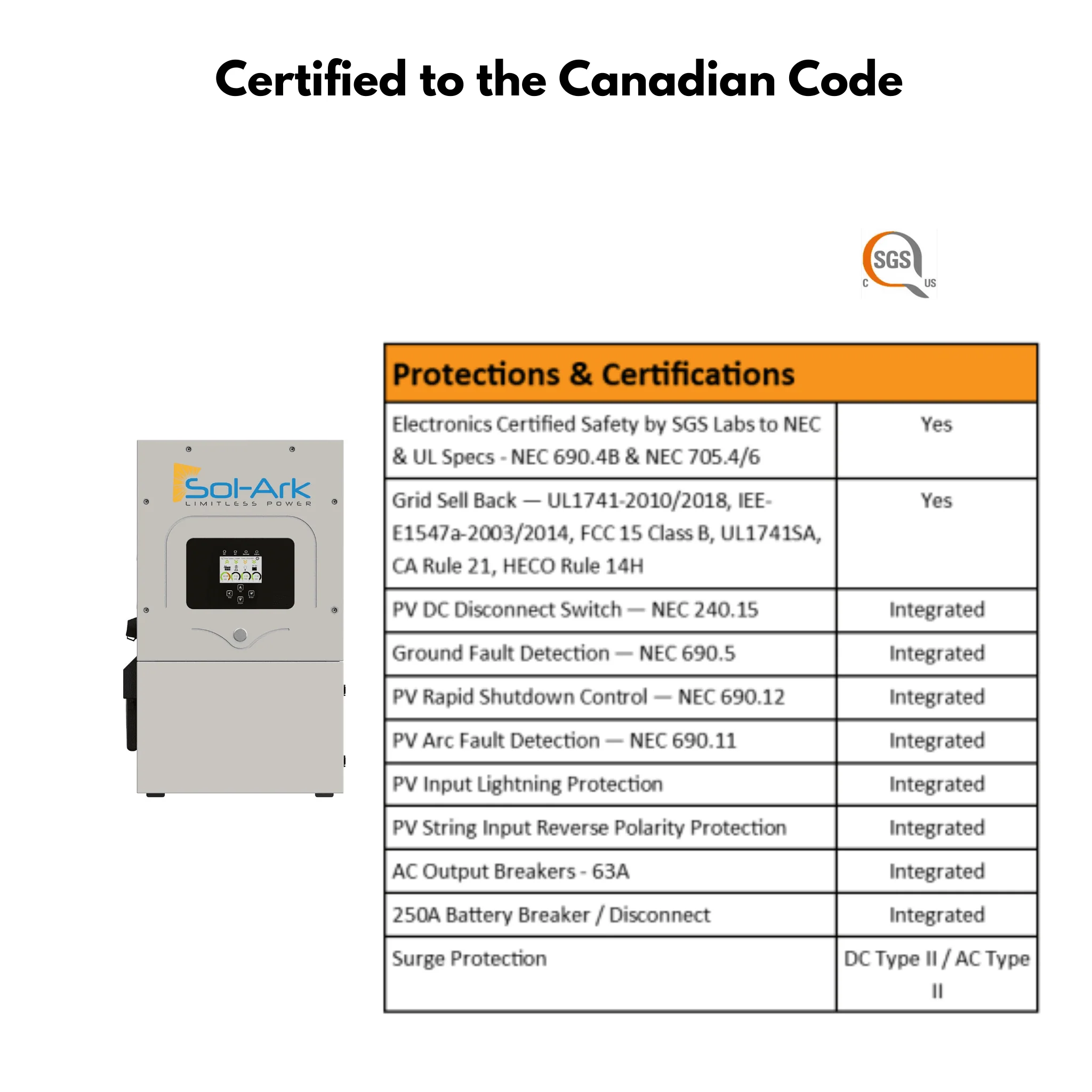

CERTIFICATIONS:
- Download the JA12 Battery Storage Declaration Statement (2023)
- Download the Anti-Islanding Protocol Letter
- Download the RULE 14H-IEEE1547-2018 Certifications (2024)
Sol-Ark Limitless-5K-LV is a 5,000 watt (5kW) 120/240Vac output and 97.5% efficiency hybrid inverter that works grid-connected or off-grid. The single unit operates as a power inverter, battery charger, system monitor and connection box that will minimize utility grid dependence and optimize the balance between battery storage and renewable energy sources. The system can be connected to up to 6,500 watts of solar panels making this powerful battery inverter one of the highest performing on the market. 10 year product warranty. The easy to install and high performing hybrid inverter delivers continuous power for grid-tied or stand-alone solar power generation for homes and light commercial systems with 48Vdc battery backup power.
KEY FEATURES:
- Limitless: This solar inverter can be used off-grid or on grid! Applications include parallel stacking, grid sell, meter zero, time of use, smart load, AC coupling, & peak shaving.
- All-In-One: The Sol-Ark 5k Outdoor Case is a pre-wired system that contains the inverter, charge controller, and more, all in one package; no fuses, breakers, or combiner boxes necessary! With minimal additional hardware required, your install stays simple and low-cost.
- Battery Agnostic: Sol-Ark inverters also do not have expensive battery restrictions like other solar inverters do, and can be used with a wide variety of 48V battery chemistries, from lead to lithium.
- Highly Accelerated Life Testing: Proven to last well beyond the standard 10 year warranty
- USA BASED: Talk to a US Based Engineer 7 days a week
WARRANTY:
- 10-Year Standard Warranty
- 15-Year extended warranty available
OPTIONS OF USE:
- Grid-Tied Mode – Sell power back to the Utility to reduce your electric bill
- Meter Zero Mode – Zero your electric bill without adding an additional smart meter
- Time-Of-Use Mode – Use solar and batteries to minimize grid power usage when it’s most expensive
- Smart Load Mode – Use a programmable output for high-power off grid loads or grid
- Time-of-use loads – to run only when there is optimum solar – use excess PV power when batteries are full
- Off Grid applications – battery agnostic
- AC Coupling – retrofits to existing grid tie systems
- Battery backup
SUMMARY OF TECH FEATURES:
- Transformerless inverter
- Pure sine wave
- 120/240/208V
- Grid-tie, off-grid, or hybrid applications (can be with or without batteries)
- Wide variety or 48V battery chemistries, from lead to lithium
- Simultaneously manages power to battery, loads, and grid
- Expandable
- Highly efficient
