Sol-Ark 12K Hybrid Inverter - All In One Inverter | W/ Max PV Of 13000w

Sol-Ark 12K Hybrid All-In-One Canada

DOWNLOADS:

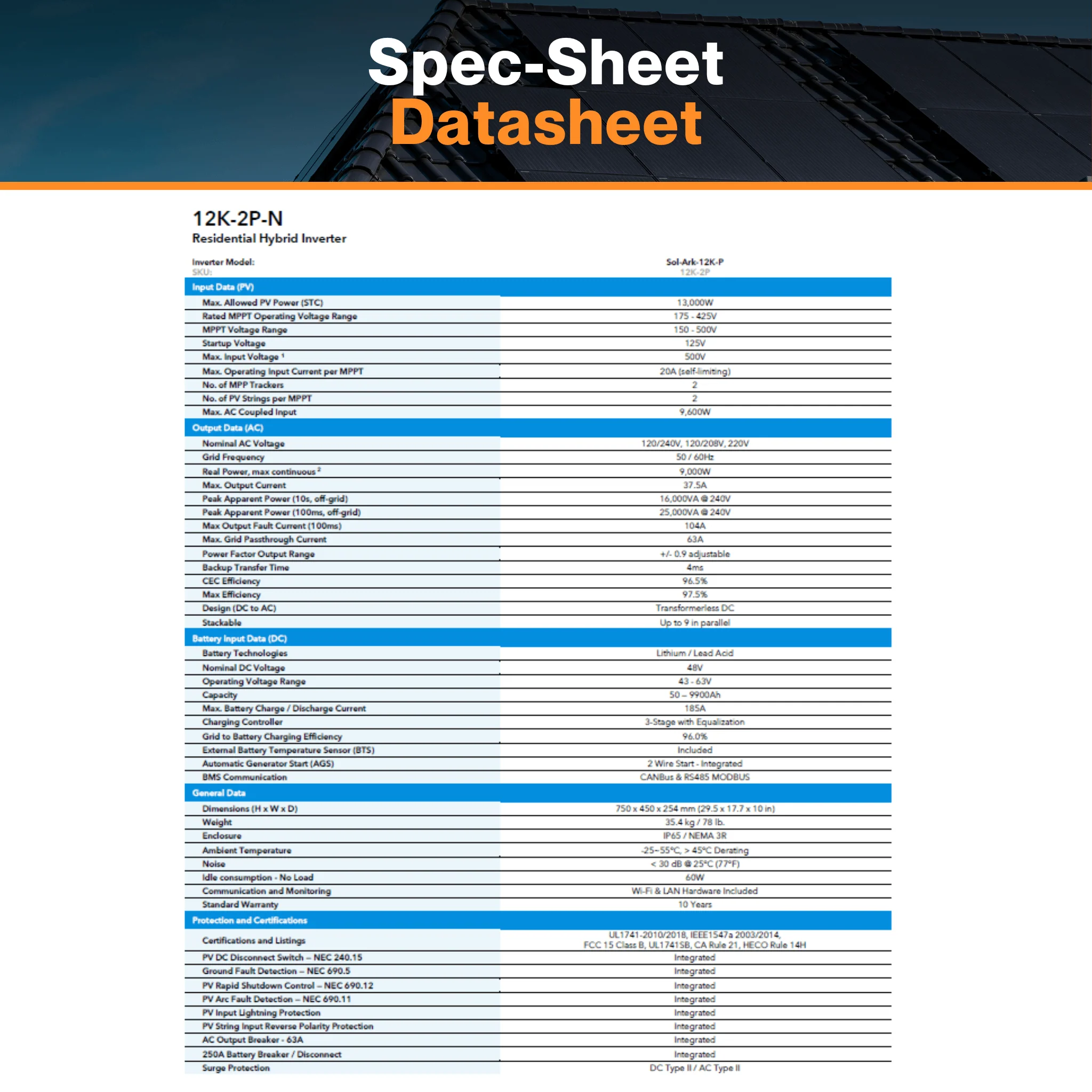

• Download the datasheet
• Download the 12K Indoor Installation & User Manual (Legacy Model)
• Download the Sol-Ark Inverter Battery Communications & Installation Guide
• Download the 12K-2P-N Installation & User Manual

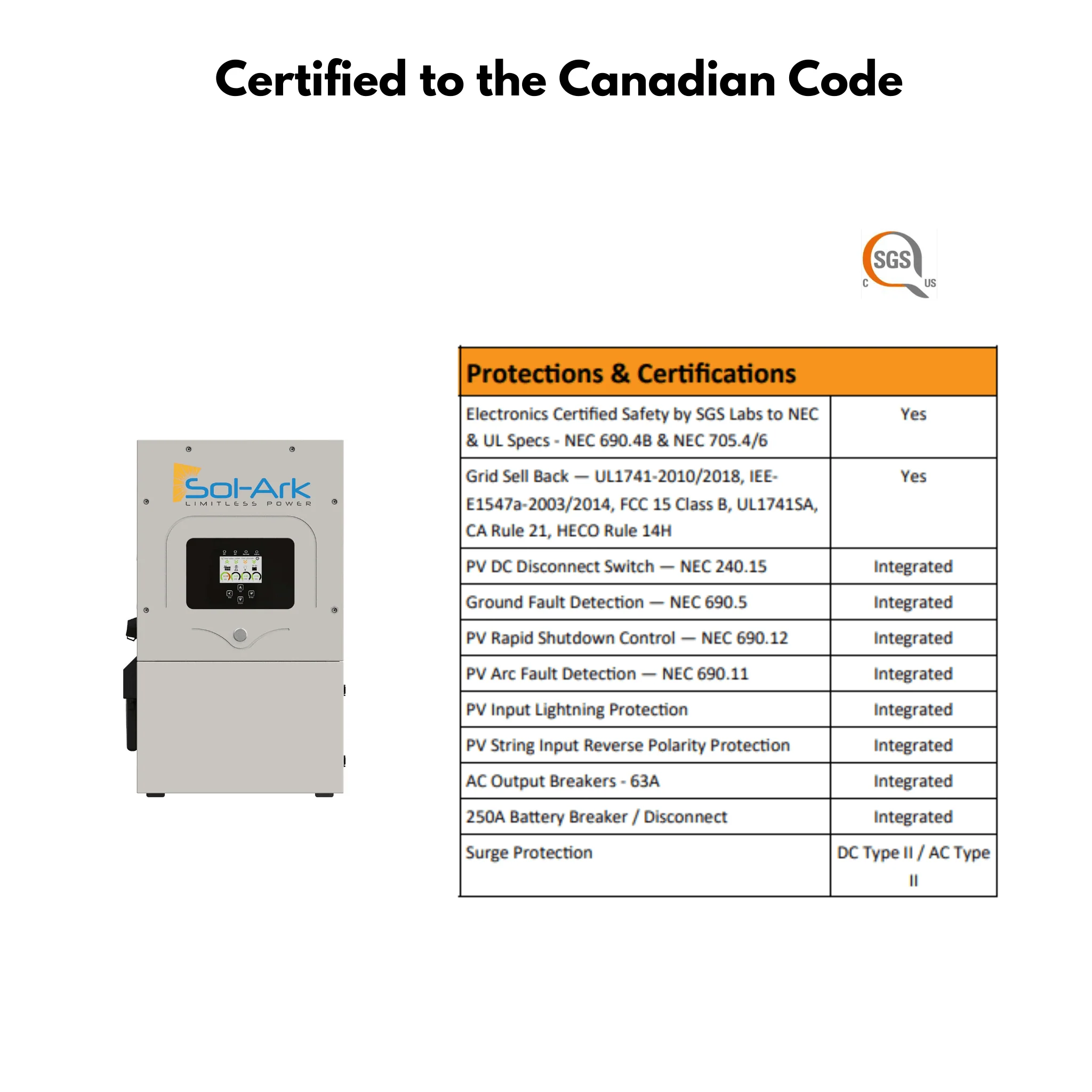

DOWNLOAD THE CERTIFICATIONS:

• Download the UL1741SB Certificate of Compliance
• Download the Battery Storage Declaration Statement
• Download the Anti-Islanding Protocol Letter
• Download the RULE 14H-IEEE1547-2018 Certifications

Sol-Ark 12K Pre-Wired Hybrid Inverter System is an all-in-one system that includes an inverter, charger controller, and a display with remote monitoring. The Sol-Ark is simple to install to a Grid-tied, Off-Grid, or Battery Backup solar system while being able to manages power to and from Solar, Battery, Grid, Loads, and Generator.

Two Built-In 500V Charge Controllers. 1 to 6 PV Strings. Battery Disconnect. 48V Battery Input. Auto-Generator Start. Rapid Shutdown Signal. Built-in Arc Fault and Ground Fault Detection.

KEY FEATURES:

• Limitless: This solar inverter can be used off-grid or on-grid! Applications include parallel stacking, grid sell, meter zero, time of use, smart load, AC coupling, & peak shaving.
• All-In-One: The Sol-Ark 12k Outdoor Case is a pre-wired system that contains the inverter, charge controller, and more, all in one package; no fuses, breakers, or combiner boxes are necessary! With minimal additional hardware required, your installation stays simple and low-cost.
• Battery Agnostic: Sol-Ark inverters also do not have expensive battery restrictions like other solar inverters do, and can be used with a wide variety of 48V battery chemistries, from lead to lithium.
• Highly Accelerated Life Testing: Proven to last well beyond the standard 10 year warranty
• USA BASED: Talk to a US Based Engineer 7 days a week

Options of use

• Grid-Tied Mode: Sell power back to the Utility to reduce your electric bill
• Meter Zero Mode:  Zero your electric bill without adding an additional smart meter
• Time-Of-Use Mode:  Use solar and batteries to minimize grid power usage when it’s most expensive
• Smart Load Mode:  Use a programmable output for high-power off-grid loads or grid
• Time-of-use loads: to run only when there is optimum solar – use excess PV power when batteries are full
• Off-Grid Applications: battery agnostic
• AC Coupling: retrofits to existing grid-tie systems
• Battery Backup

Summary of Tech Features:

• Transformerless inverter
• Pure sine wave
• 120/240/208V
• Grid-tie, off-grid, or hybrid applications (can be with or without batteries)
• Wide variety or 48V battery chemistries, from lead to lithium
• Simultaneously manages power to battery, loads, and grid
• Expandable
• Highly efficient

Warranty:

• 10-Year Standard Warranty
• 15-Year extended warranty available
