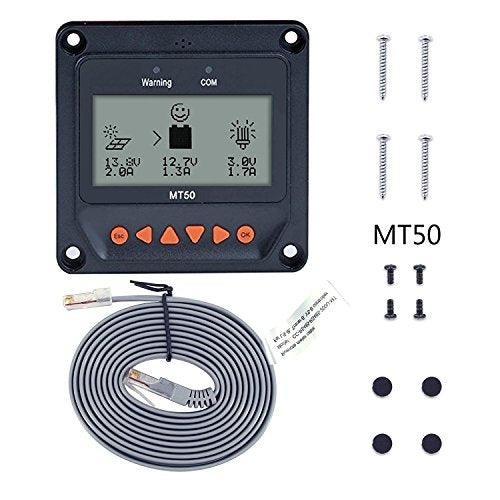

EPEVER MT50 - LCD Display Remote Meter | Auto Identify Controller | W/ LCD Displays | EPever Tracer-A/an Tracer-BN Series | Solar Charge Controller

Note: 1. MT50 with a buzzer is a very early hardware version. The MT50s currently on the market do not have this buzzer. The hardware design has changed. If the connected device fails, the fault indicator will flash. 2. This MT-50 remote meter DOES NOT work with HQST / Renogy Commandar MPPT chargersYour Satisfaction is our Highest Priority, please kindly contact us firstly if you have any question, we will always standby to help you solve the problem, thank you.MT50 MT50 is an optional remote meter to monitor and program EPsolar controller, compatible with:LS-B, LS-BP,VS-BN, Tracer-BN,Tracer-A, eTracer, iTracer. Features: - Automatic identify the controller, and display relevant parameter data. - Large-screen informative LCD displays all the operating data and system working status. - Simple and convenient operation. - Real-time alarm of failure information. - Longer communication distance based on RS485. - Diversified load control modes: Manual Control, Light ON/OFF, Light ON+ Timer, Time Control. - Battery type selection: Gel, sealed, flooded and User (programmable). - Programmable parameters. - Energy statistics display function. Parameters: - Self-consumption: Backlight on<23mA, Backlight off <15mA. - Faceplate dimensions: 98 * 98 mm / 3.86 * 3.86 in. - Frame dimensions:114 * 114 mm / 4.49 * 4.49 in. - Connector type: RJ45. - Meter cable :2m. - Net weight: 0.190 Kg. - Working environment temperature: -20¡æ~+70¡æ/-4¨H~158¨H.MT50 is an optional remote meter to monitor and program Epever controllers. This unit is compatible with Tracer-A, Tracer-BN , LS-B, LS-BP, VS-BN, eTracer, iTracer series controllers ONLY from Epever,showing more detail parameters than on the controller. Real-time display the operational data and working status of the connection devices in digital, graphic and textual forms by a large-screen multifunction LCD. Simple and convenient operation with six navigation function keys, the operation is direct, convenient and rapid. Large-screen informative LCD display. Automatic identify the controller,displays all the operating data,relevant parameter data,and system working status. Both data and power flowing on the same lead, no need external power supply.

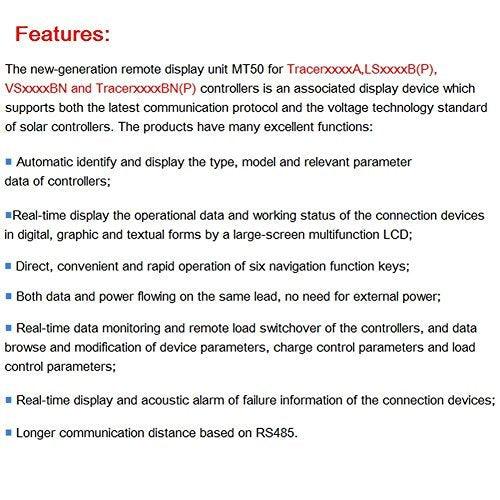

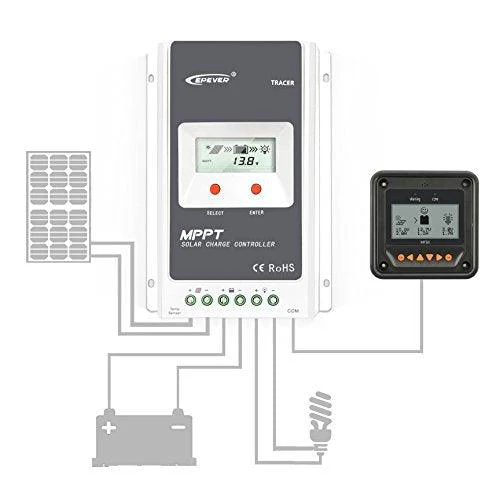

• MT50 is an optional remote meter to monitor and program Epever controllers. This unit is compatible with Tracer-A, Tracer-BN , LS-B, LS-BP, VS-BN, eTracer, iTracer series controllers ONLY from Epever,showing more detail parameters than on the controller.
• Real-time display the operational data and working status of the connection devices in digital, graphic and textual forms by a large-screen multifunction LCD.
• Simple and convenient operation with six navigation function keys, the operation is direct, convenient and rapid.
• Large-screen informative LCD display. Automatic identify the controller,displays all the operating data,relevant parameter data,and system working status.
• Both data and power flowing on the same lead, no need external power supply.
