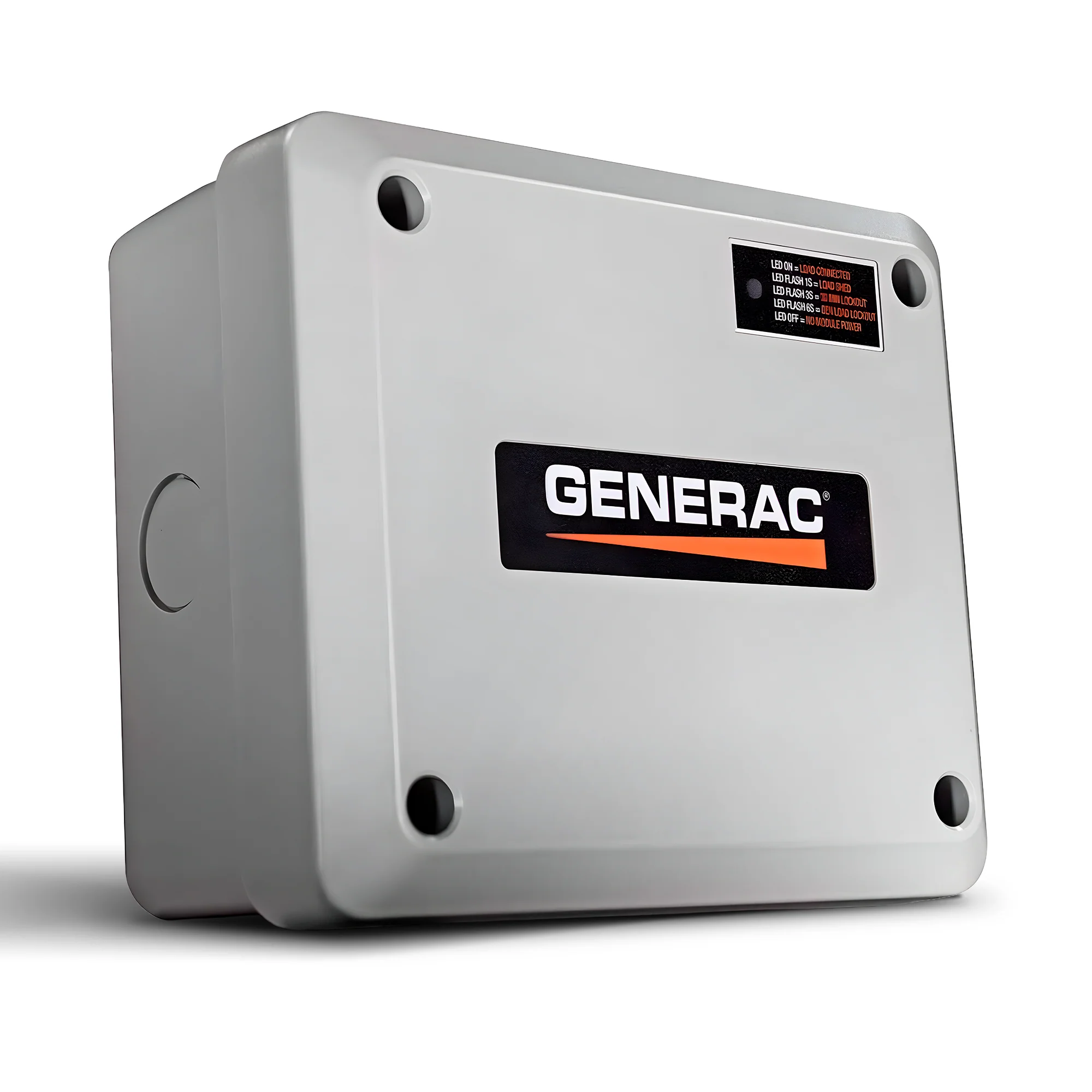

Generac 7000-1 Load Manager 50A | Smart Automatic Load Shedding Module | 240V, 2-Pole, NEMA 3R | Frequency-Based Load Management | Priority Load Control | 50/60 Hz | For Generac Standby Generators & PWRcell™ ESS

Downloads

Datasheet
Manual

The Generac 7000-1 Load Manager 50A is a smart, automatic load management and load shedding module designed to optimize performance and protect Generac standby generators and PWRcell™ energy storage systems. Built as part of Generac’s Smart Power Management System, this autonomous module helps homeowners and installers maximize available generator capacity while reducing overall system cost.

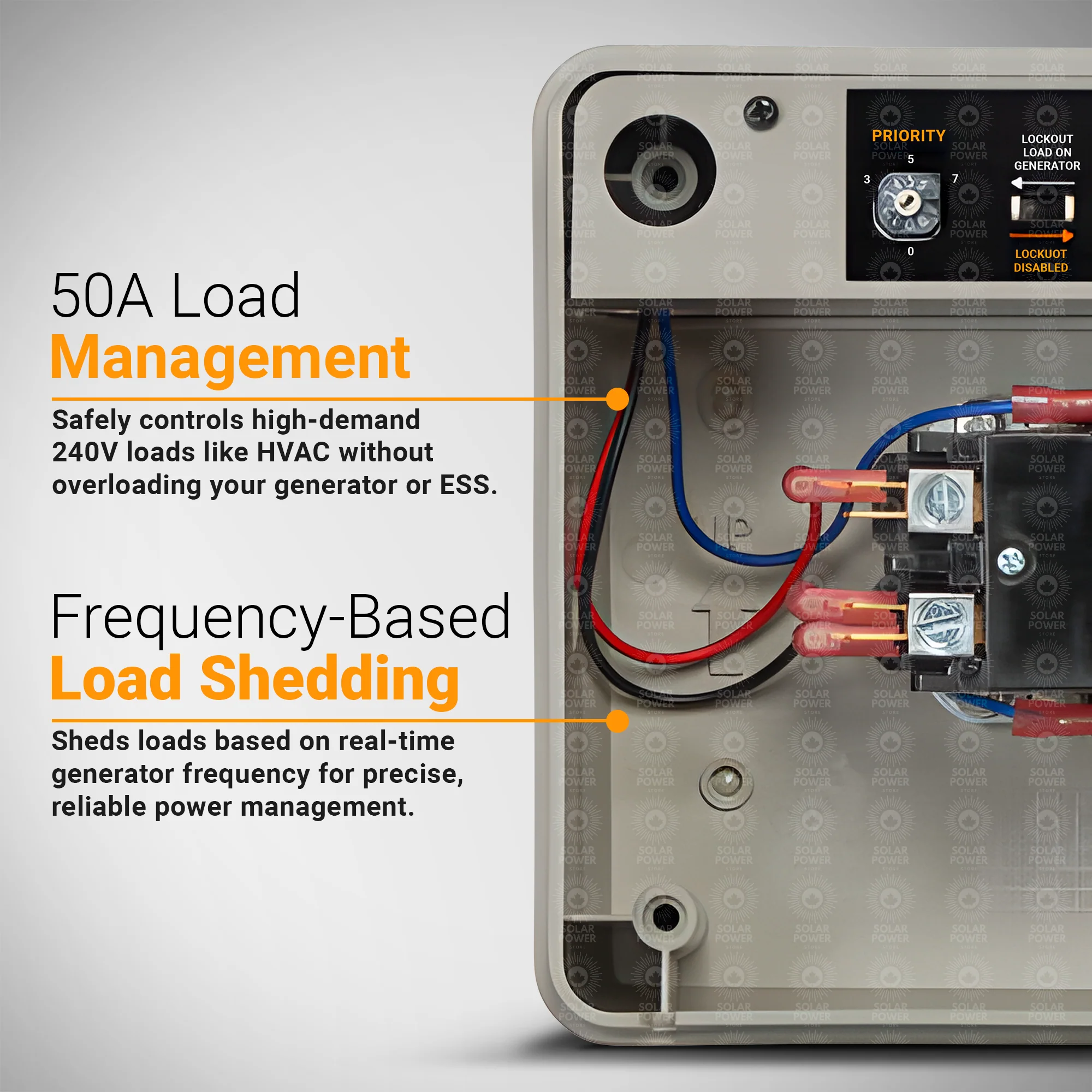

Unlike traditional load management systems that rely on a central controller, the Generac Load Manager 50A operates independently, monitoring generator frequency in real time to determine true available capacity. When system frequency drops below the configured threshold, the unit automatically sheds non-essential loads, allowing the generator or PWRcell ESS to recover quickly and maintain reliable power delivery.

Key Features & Benefits

• 50 Amp Load Management Module for residential standby generators

• Automatic load shedding based on real-time frequency (Hz), not estimated load

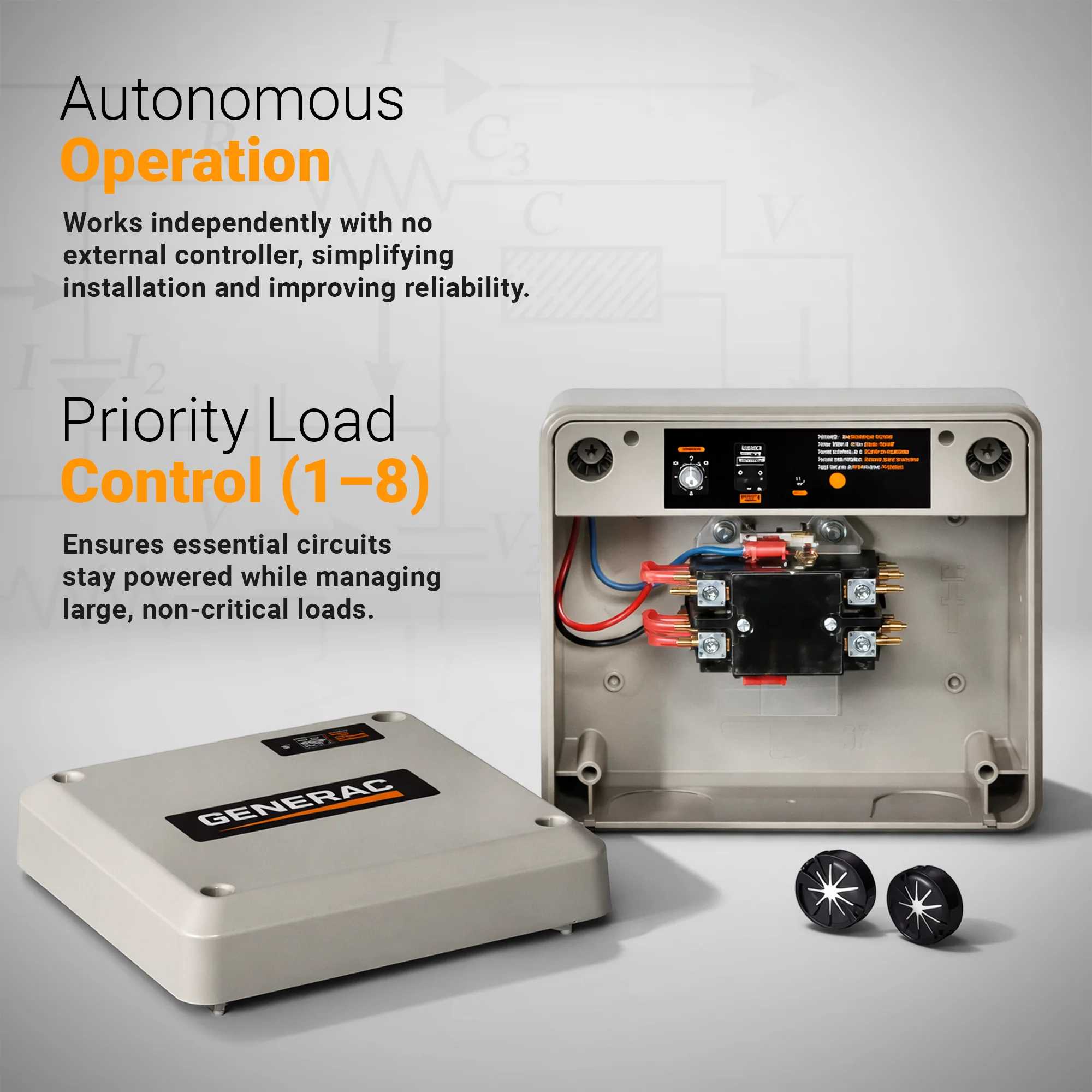

• Self-aware, autonomous operation – no external controller required

• Supports up to 8 Generac Load Managers in a single system

• Priority settings (1–8) allow controlled startup of large loads like HVAC

• Lock-out mode for non-essential circuits during outages

• Helps reduce generator size requirements, lowering total system cost

• Fully compatible with Generac standby generators and PWRcell™ ESS


---

Ideal Applications

• Home standby generator load management

• HVAC load shedding for generators

• Whole-house generator power optimization

• Residential generator load control systems

• Smart energy management with Generac PWRcell

---

Technical Specifications

• Model: G0070001 (7000-1)

• Rated Current: 50 Amps (Resistive)

• Voltage: 220 / 240 VAC

• Inductive Amps: 40 A

• Locked Rotor Amps: 180 A

• Frequency Selectability: 50 Hz / 60 Hz

• User-Configurable Frequency Sensitivity: 0.2 Hz or 2.0 Hz

• Enclosure: NEMA 3R, UL 50 rated (outdoor-capable)

• Poles: 2

• Warranty : 3-Year Limited Warranty
