APsystems RSD-D-20 (MC4) Rapid Shutdown Device | Dual Input | NEC & SunSpec Compliant
Downloads:
Ensure full solar system safety and code compliance with the APsystems RSD-D-20 (MC4) — a dual-input, module-level rapid shutdown device (RSD) designed for maximum compatibility and efficiency in residential and commercial PV systems.
Code-Compliant Solar Safety
Meet and exceed NEC 690.12 requirements (2017, 2020, 2023) with this UL1741-certified RSD. The RSD-D-20 (MC4) ensures system shutdown when the Transmitter signal is absent, providing essential protection for rooftop and ground-mounted solar installations.
Dual-Input Channel for High-Density Arrays

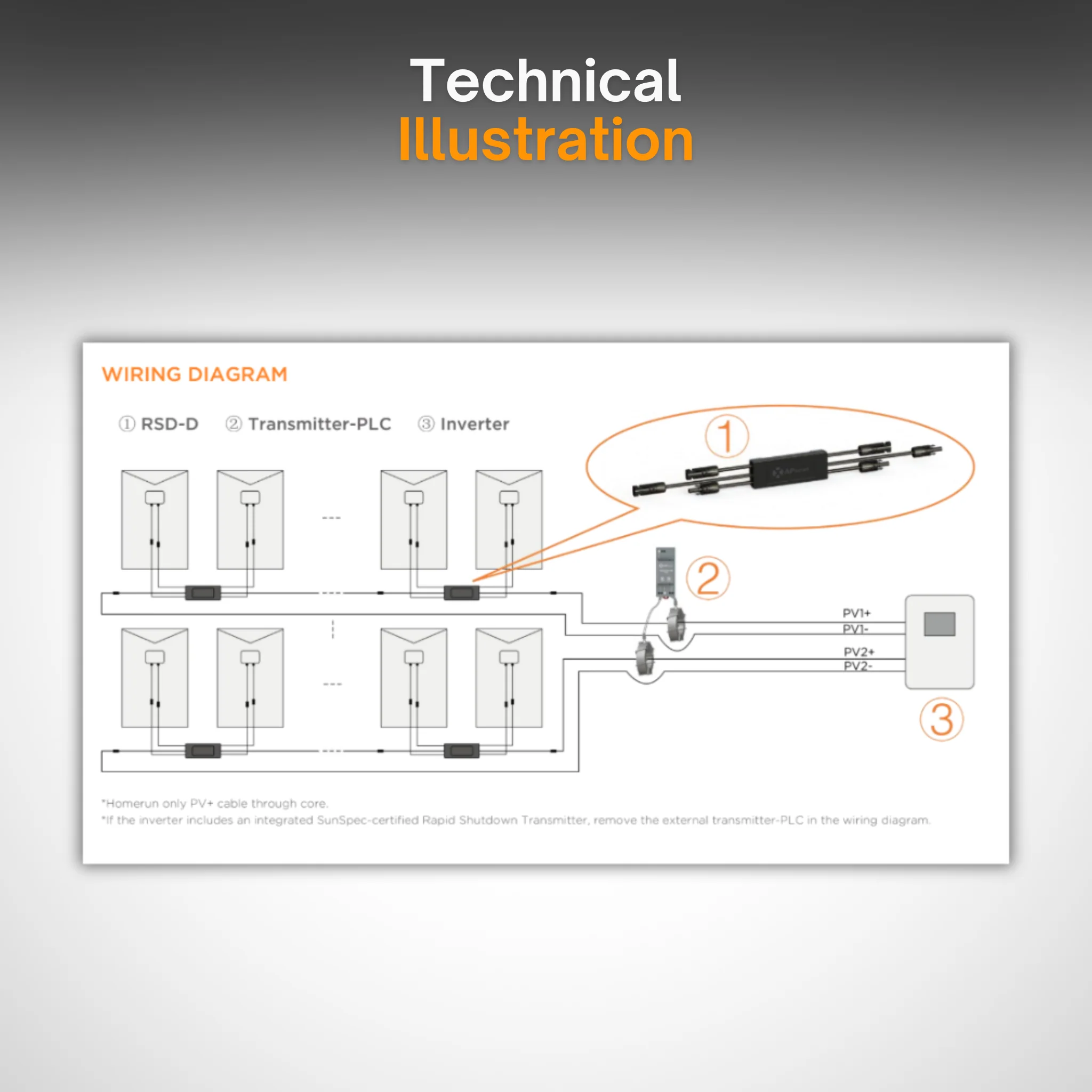

Equipped with dual MPPT channel support, this MC4 rapid shutdown unit simplifies wiring and improves compatibility with modern PV modules, inverters, and split-phase solar inverters.
SunSpec Compliant & Smart Integration
Built to integrate seamlessly with SunSpec-certified inverters, the RSD-D-20 maintains operation via PLC-based heartbeat signal and allows manual shutdown via transmitter switch for added control and flexibility.
Key Features:
-
NEC 2017/2020/2023 (690.12) compliant
-
Dual input channels for 2 PV module strings
-
SunSpec & PLC communication compatible
-
Works with up to 1500V systems
-
IP68 / NEMA 6P waterproof rating
-
Stäubli MC4 connectors for secure DC wiring
-
Supports manual or automatic shutdown
-
Designed to reduce fire risk during suppression efforts

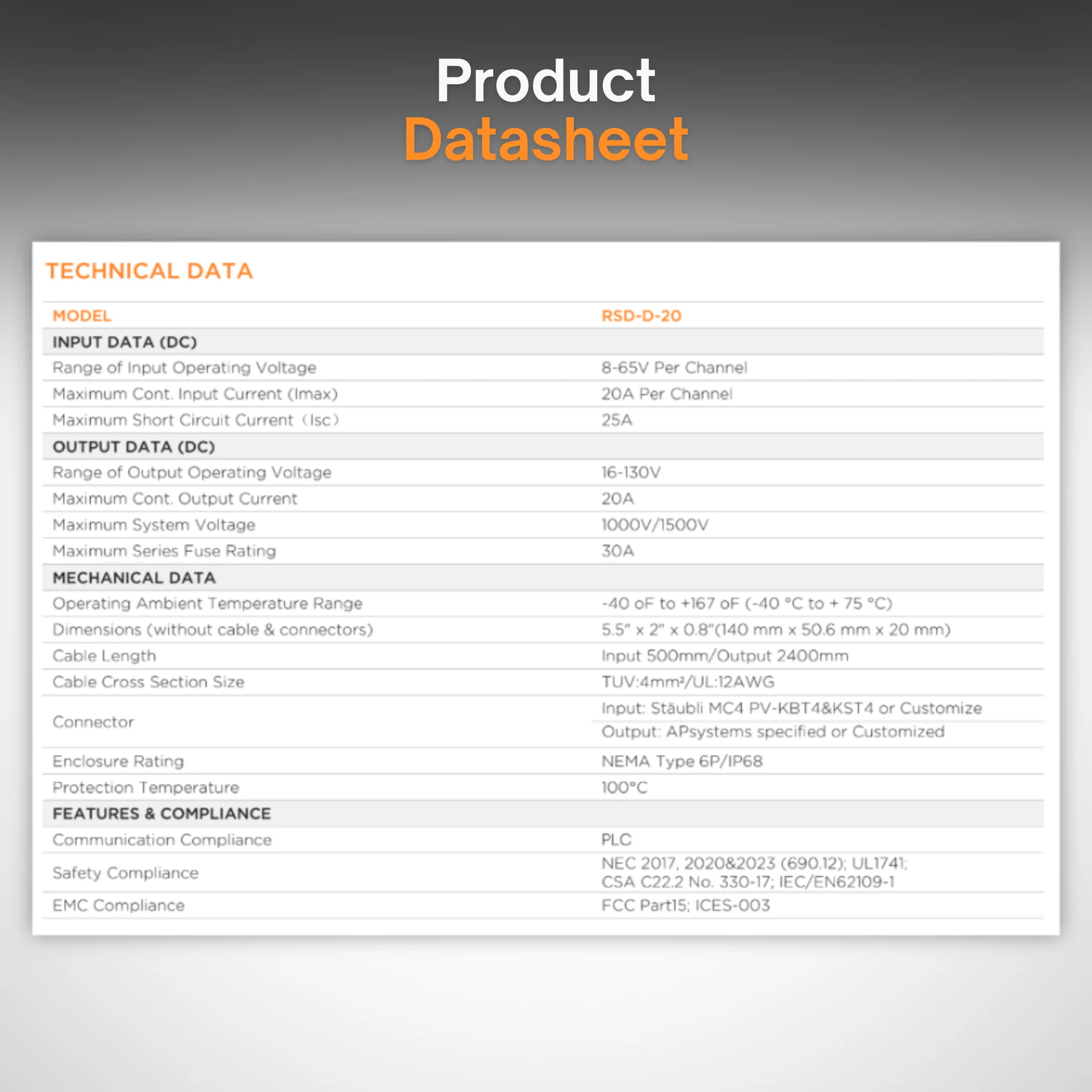

Specifications:
-
Model: RSD-D-20 (MC4)
-
Max Current: 20A per channel
-
Voltage Range: 8–65V DC input / 16–130V DC output
-
Short Circuit Current: 25A
-
Cable Length: Input 0.5m / Output 2.4m
-
Operating Temp: -40 °C to +75 °C
-
Certifications: UL1741, CSA C22.2 No. 330-17, IEC/EN62109-1, FCC Part 15
Ideal For:
-
PV system integrators
-
Solar contractors & installers
-
Off-grid & grid-tied solar systems
-
SunSpec-compatible inverter systems
-
Module-level solar rapid shutdown applications
What’s Included:
-
1x APsmart RSD-D-20 (MC4) unit
-
Stäubli MC4 PV-KBT4 & KST4 connectors
-
Integrated 2.4m output cable
Stay compliant. Stay safe. Choose the APsystems RSD-D-20 MC4 rapid shutdown device for your next solar installation.
