Teck Cable | CSA Approved Armoured Electrical Cable | Direct Burial Compatible

*PRICE IS PER FOOT*

Downloads:

• 2C Infosheet
• 3C Infosheet
• 4C Infosheet
• 10AWG Infosheet
• 12AWG Infosheet

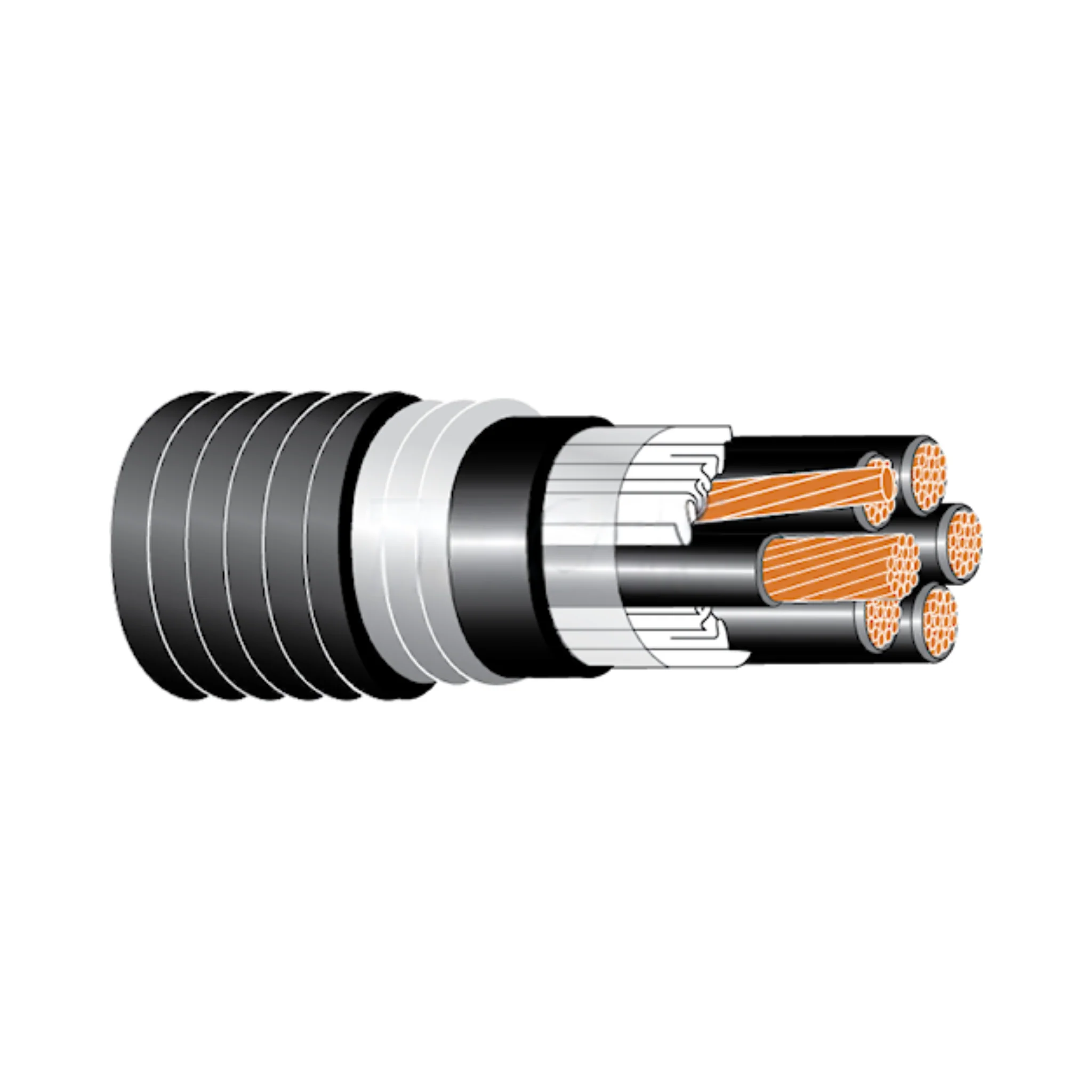

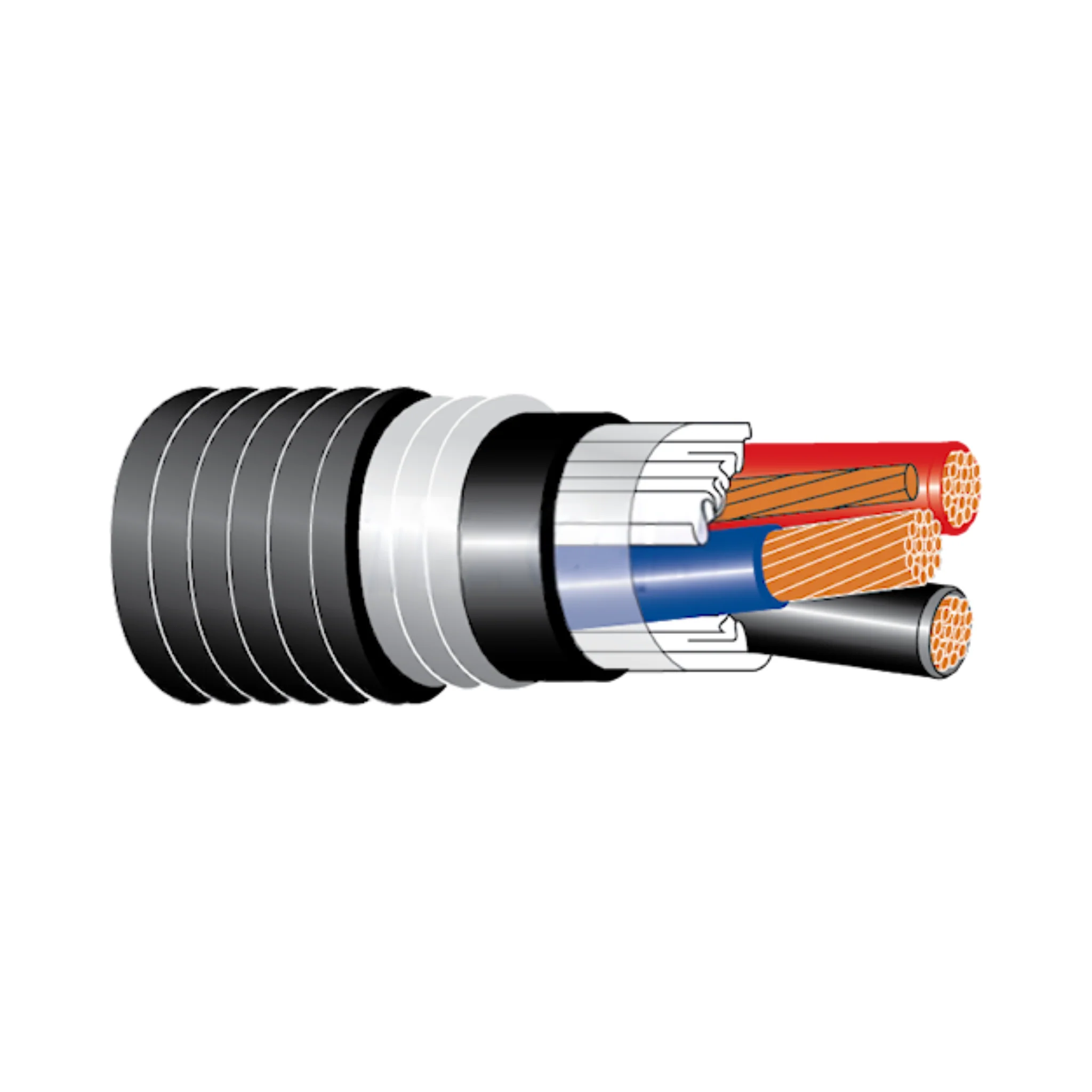

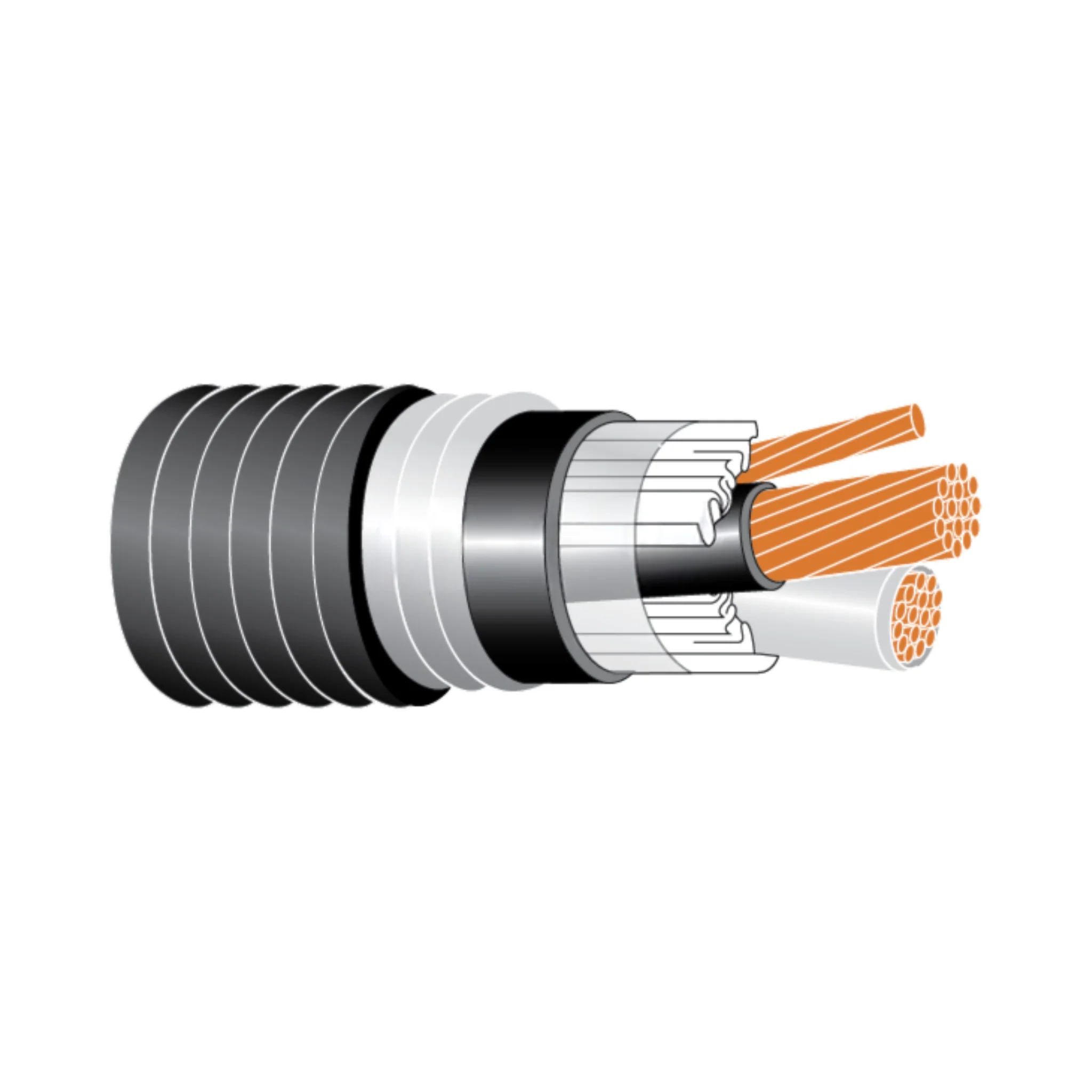

These Teck 90 cables are constructed with stranded copper phase conductors and a bare copper bonding conductor for grounding. With cross-linked polyethylene (XLPE) insulation and a tough black PVC jacket, each cable includes interlocked aluminum armour to provide superior mechanical protection and environmental resistance.

Available in multiple voltage ratings, sizes, and conductor counts, these cables are suitable for commercial, industrial, and outdoor energy applications, including direct burial and cable tray installations.

Key Features

• Voltage Ratings: 1000V (Teck 90)

• Phase Conductors:

  • Stranded Class B Copper

  • Sizes from 12 AWG up to 750 MCM

• Bonding Conductor:

  • Bare Copper, included with all variants

• Insulation: XLPE (Type RW90)

• Armour: Aluminum Interlocked Armour (AIA)

• Jackets:

  • Inner: Black PVC

  • Outer: Black PVC (Low-acid gas, flame-retardant, UV and moisture resistant)

• Temperature Rating: -40°C to +90°C

• Certifications:

  • CSA C22.2 No. 131, 38, 2256

  • CSA FT4 Flame Rating

  • RoHS Compliant
