4/0 AWG Solar Battery Extension Cable - Inverter And Battery Cable 4/0 AWG | Tinned Copper | 450ah | Red And Black 10FT Each
4/0 AWG Solar Battery Extension Cable - Inverter And Battery Cable 4/0 AWG | Tinned Copper | 450ah | Red And Black 10FT Each
**10FT Length Red and Black 4/0 AWG Tinned Copper**
The 4/0awg cable is constructed of stranded tinned copper conductors, EPDM insulation, and a black CPE jacket. It is made for Solar equipment installations to act Solar Battery Cable or Solar Inverter Cable. This durable cable has a maximum temperature of 105°C and is rated at 600V. This cable's jacket is rated for continuous wet/dry exposure and resists oils, acids, alkalines, heat, and flame. It is also cRU certified which is CSA component compliant.

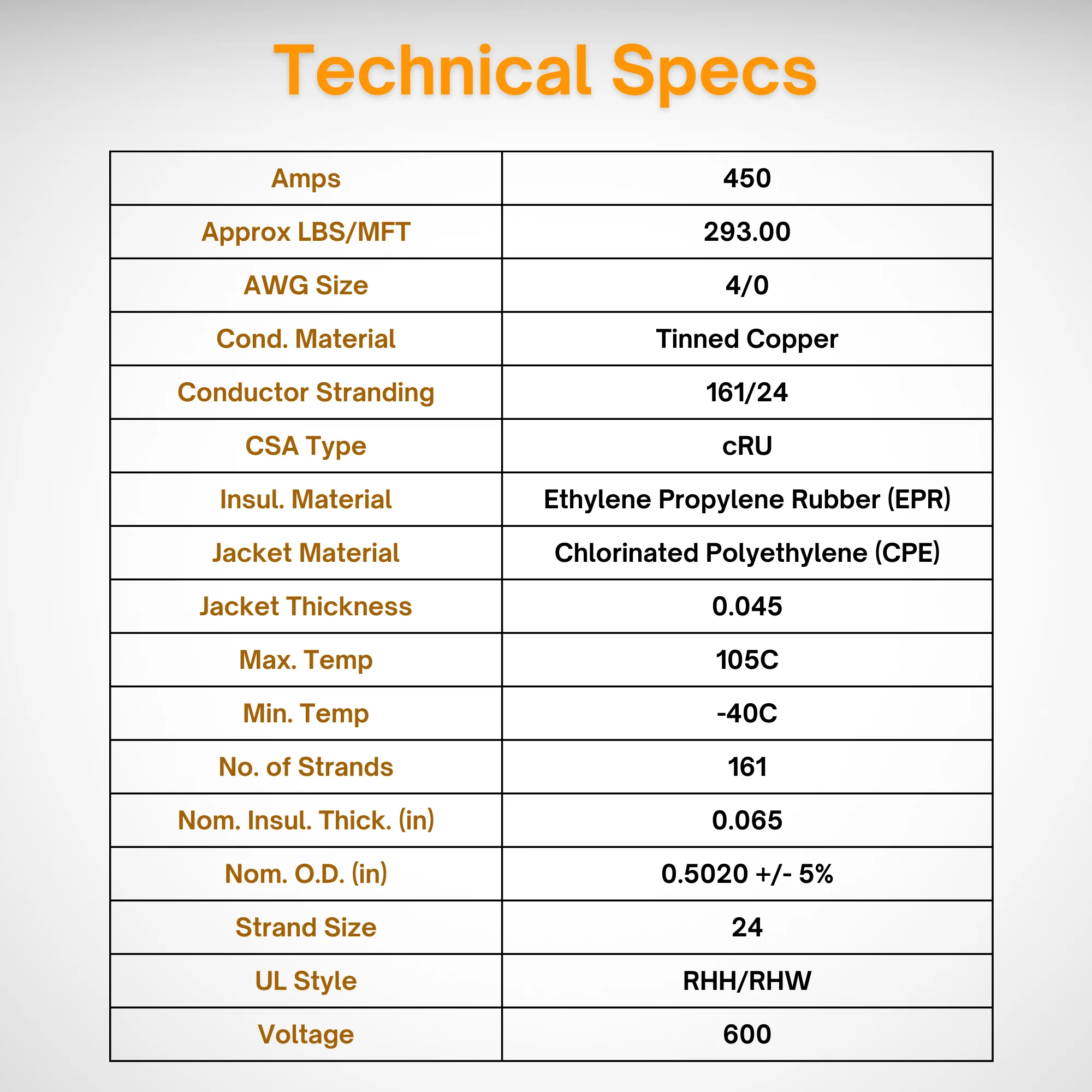

PRODUCT SPECIFICATIONS
| Specification | Details |
| Amps | 450 |
| Approx LBS/MFT | 293.00 |
| AWG Size | 4/0 |
| Cond. Material | Tinned Copper |
| Conductor Stranding | 161/24 |
| CSA Type | cRU |
| Insul. Material | Ethylene Propylene Rubber (EPR) |
| Jacket Material | Chlorinated Polyethylene (CPE) |
| Jacket Thickness | 0.045 |
| Max. Temp | 105C |
| Min. Temp | -40C |
| No. of Strands | 161 |
| Nom. Insul. Thick. (in) | 0.065 |
| Nom. O.D. (in) | 0.5020 +/- 5% |
| Strand Size | 24 |
| UL Style | RHH/RHW |
| Voltage | 600 |
Original: $373,000.00
-70%$373,000.00
$111,900.00More Images
4/0 AWG Solar Battery Extension Cable - Inverter And Battery Cable 4/0 AWG | Tinned Copper | 450ah | Red And Black 10FT Each
**10FT Length Red and Black 4/0 AWG Tinned Copper**
The 4/0awg cable is constructed of stranded tinned copper conductors, EPDM insulation, and a black CPE jacket. It is made for Solar equipment installations to act Solar Battery Cable or Solar Inverter Cable. This durable cable has a maximum temperature of 105°C and is rated at 600V. This cable's jacket is rated for continuous wet/dry exposure and resists oils, acids, alkalines, heat, and flame. It is also cRU certified which is CSA component compliant.
PRODUCT SPECIFICATIONS
| Specification | Details |
| Amps | 450 |
| Approx LBS/MFT | 293.00 |
| AWG Size | 4/0 |
| Cond. Material | Tinned Copper |
| Conductor Stranding | 161/24 |
| CSA Type | cRU |
| Insul. Material | Ethylene Propylene Rubber (EPR) |
| Jacket Material | Chlorinated Polyethylene (CPE) |
| Jacket Thickness | 0.045 |
| Max. Temp | 105C |
| Min. Temp | -40C |
| No. of Strands | 161 |
| Nom. Insul. Thick. (in) | 0.065 |
| Nom. O.D. (in) | 0.5020 +/- 5% |
| Strand Size | 24 |
| UL Style | RHH/RHW |
| Voltage | 600 |
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
**10FT Length Red and Black 4/0 AWG Tinned Copper**
The 4/0awg cable is constructed of stranded tinned copper conductors, EPDM insulation, and a black CPE jacket. It is made for Solar equipment installations to act Solar Battery Cable or Solar Inverter Cable. This durable cable has a maximum temperature of 105°C and is rated at 600V. This cable's jacket is rated for continuous wet/dry exposure and resists oils, acids, alkalines, heat, and flame. It is also cRU certified which is CSA component compliant.
PRODUCT SPECIFICATIONS
| Specification | Details |
| Amps | 450 |
| Approx LBS/MFT | 293.00 |
| AWG Size | 4/0 |
| Cond. Material | Tinned Copper |
| Conductor Stranding | 161/24 |
| CSA Type | cRU |
| Insul. Material | Ethylene Propylene Rubber (EPR) |
| Jacket Material | Chlorinated Polyethylene (CPE) |
| Jacket Thickness | 0.045 |
| Max. Temp | 105C |
| Min. Temp | -40C |
| No. of Strands | 161 |
| Nom. Insul. Thick. (in) | 0.065 |
| Nom. O.D. (in) | 0.5020 +/- 5% |
| Strand Size | 24 |
| UL Style | RHH/RHW |
| Voltage | 600 |
