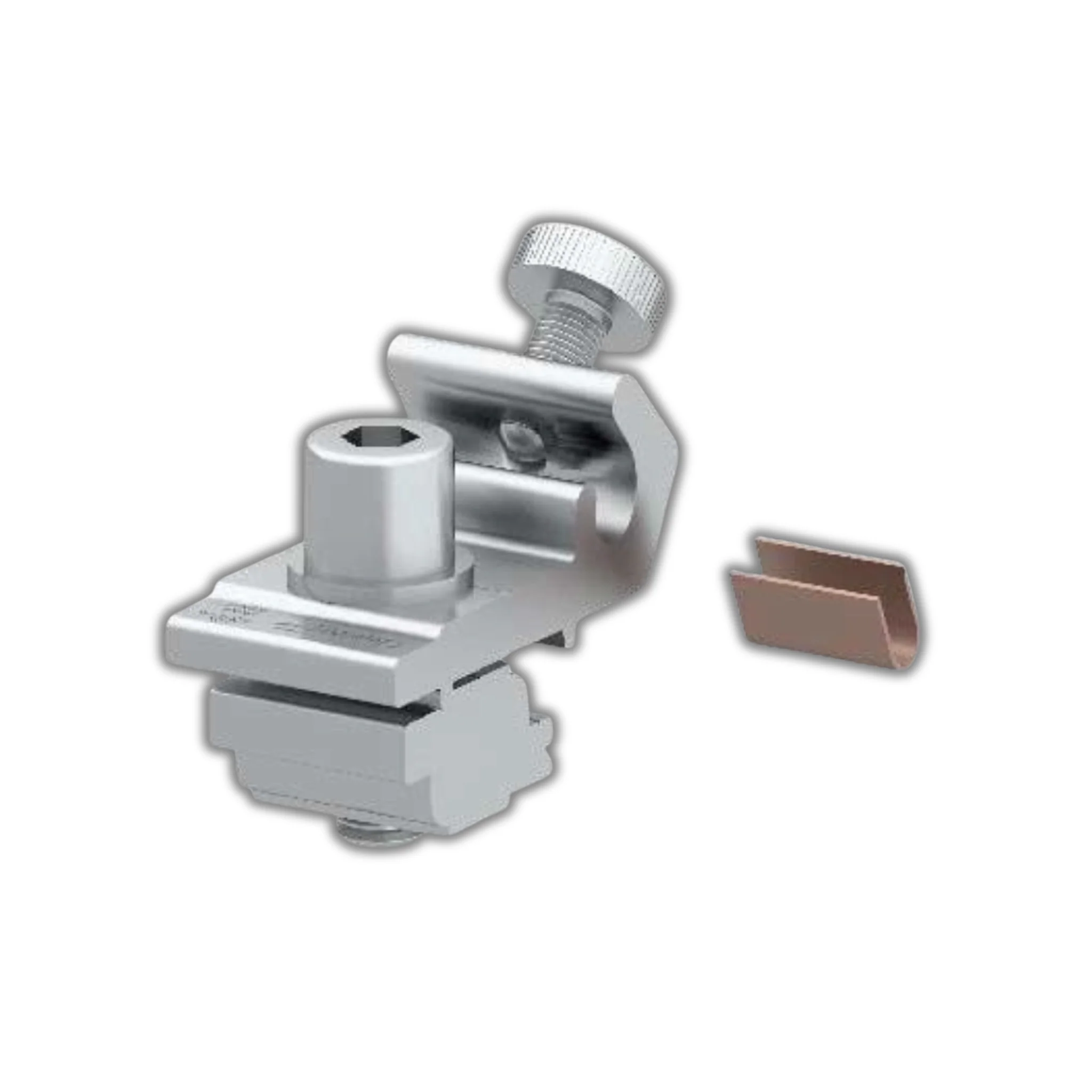

Grounding Lug with U-Shape Copper Channel | Solar Panel Grounding Connector | PV Mounting Ground Lug Kit for Solar Power, Off-Grid, Residential & Commercial Systems | ETL Listed

Downloads

Datasheet
Certification

Ensure safe and reliable electrical grounding for your solar power system with the Grounding Lug with U-Shape Copper Channel. This solar grounding lug is designed for PV mounting systems, providing a secure and corrosion-resistant connection between solar panels and racking structures. Built to meet cETLus safety standards, it guarantees superior performance and long-term durability in residential, commercial, and utility-scale solar installations.

Crafted from high-quality Hpb59-1 brass and T2 copper, this solar panel grounding connector delivers exceptional conductivity and weather resistance. Its U-shape copper grounding channel and SUS304 stainless-steel bolt ensure a tight, stable bond for optimal grounding integrity.

---

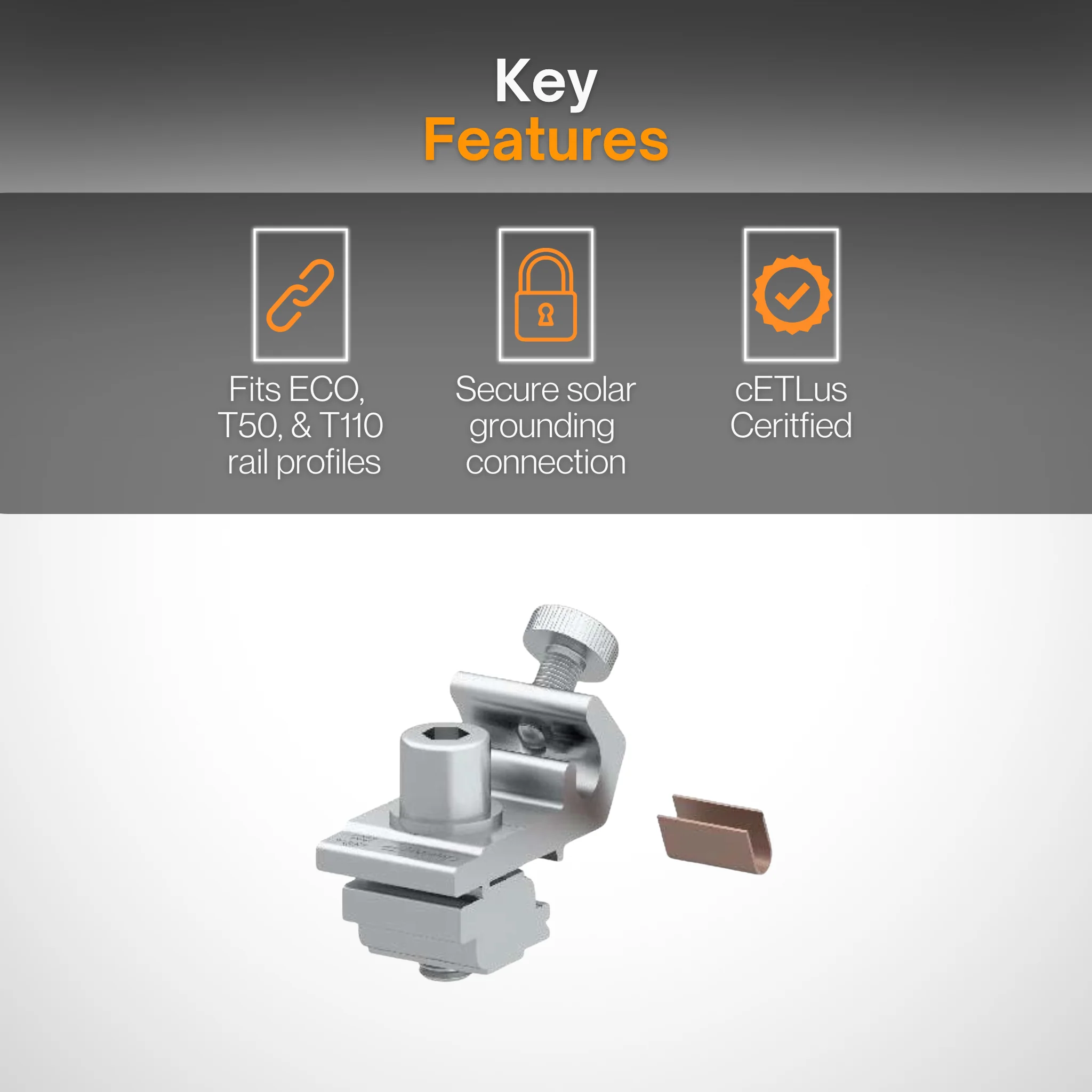

Key Features

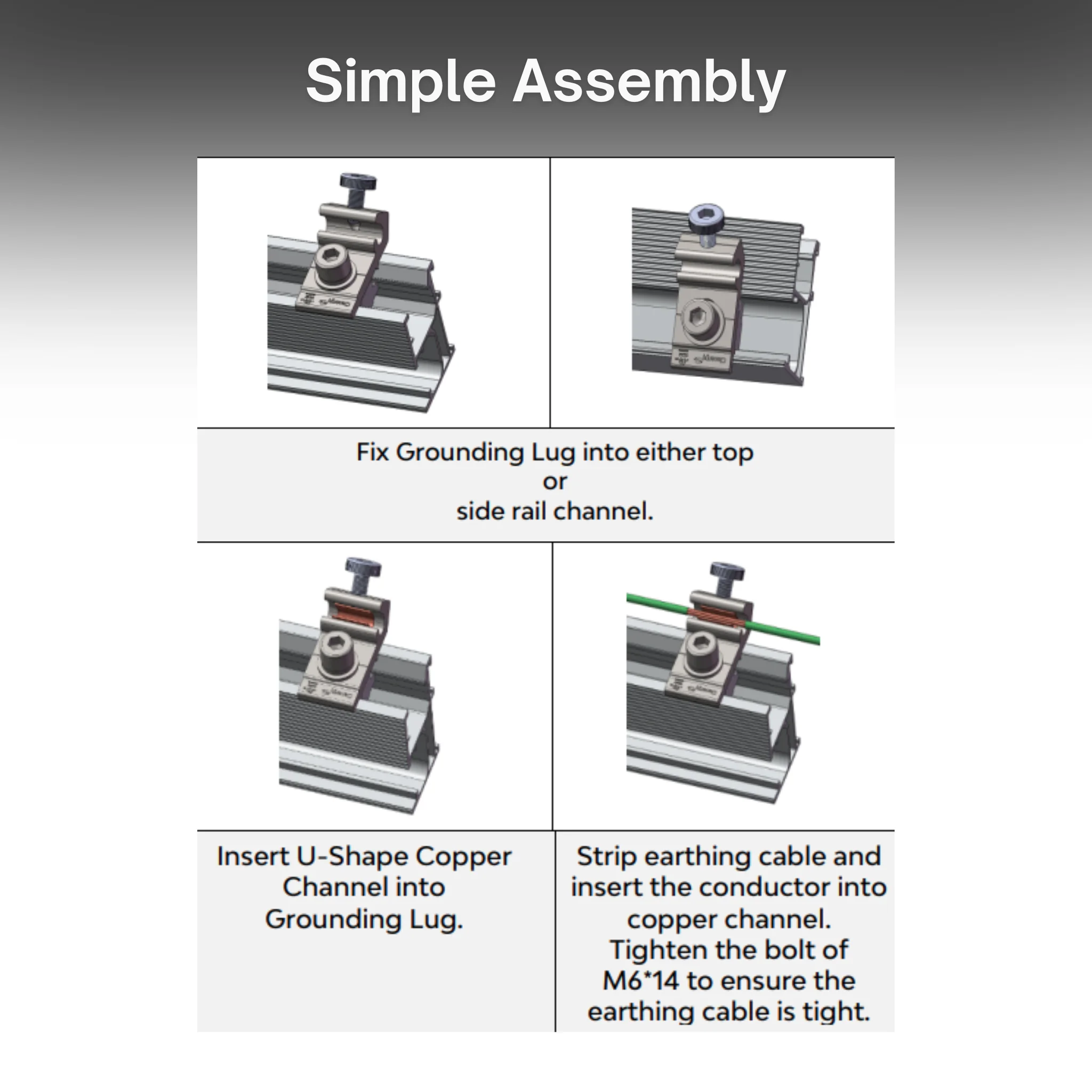

• Compatible with PV mounting rails – Fits ECO, T50, and T110 rail profiles

• Secure solar grounding connection – Provides safe earthing for PV systems

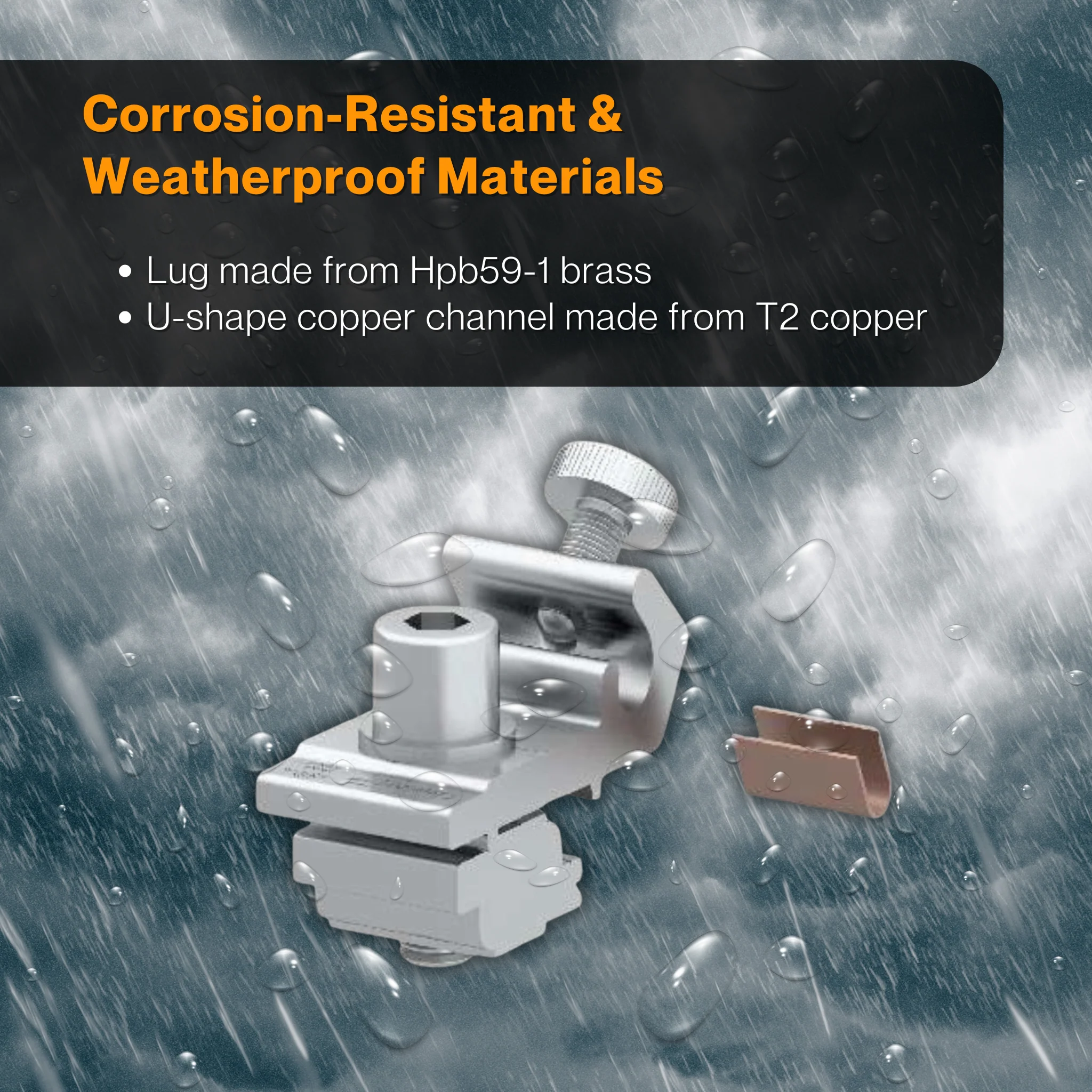

• Durable construction – Lug made from Hpb59-1 brass; U-shape copper channel made from T2 copper

• Corrosion-resistant and weatherproof – Ideal for outdoor solar applications

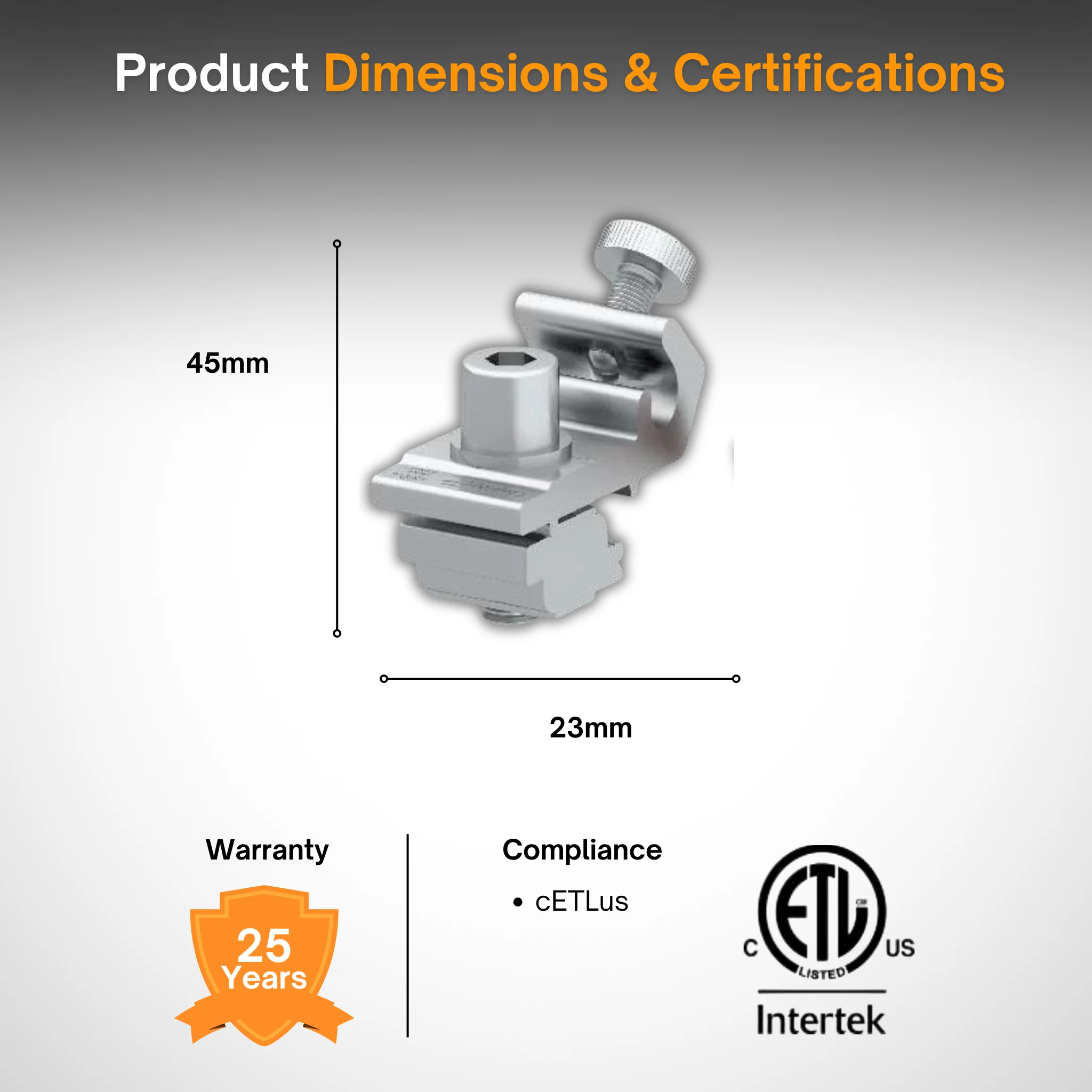

• cETLus certified solar grounding lug – Complies with Canadian safety standards

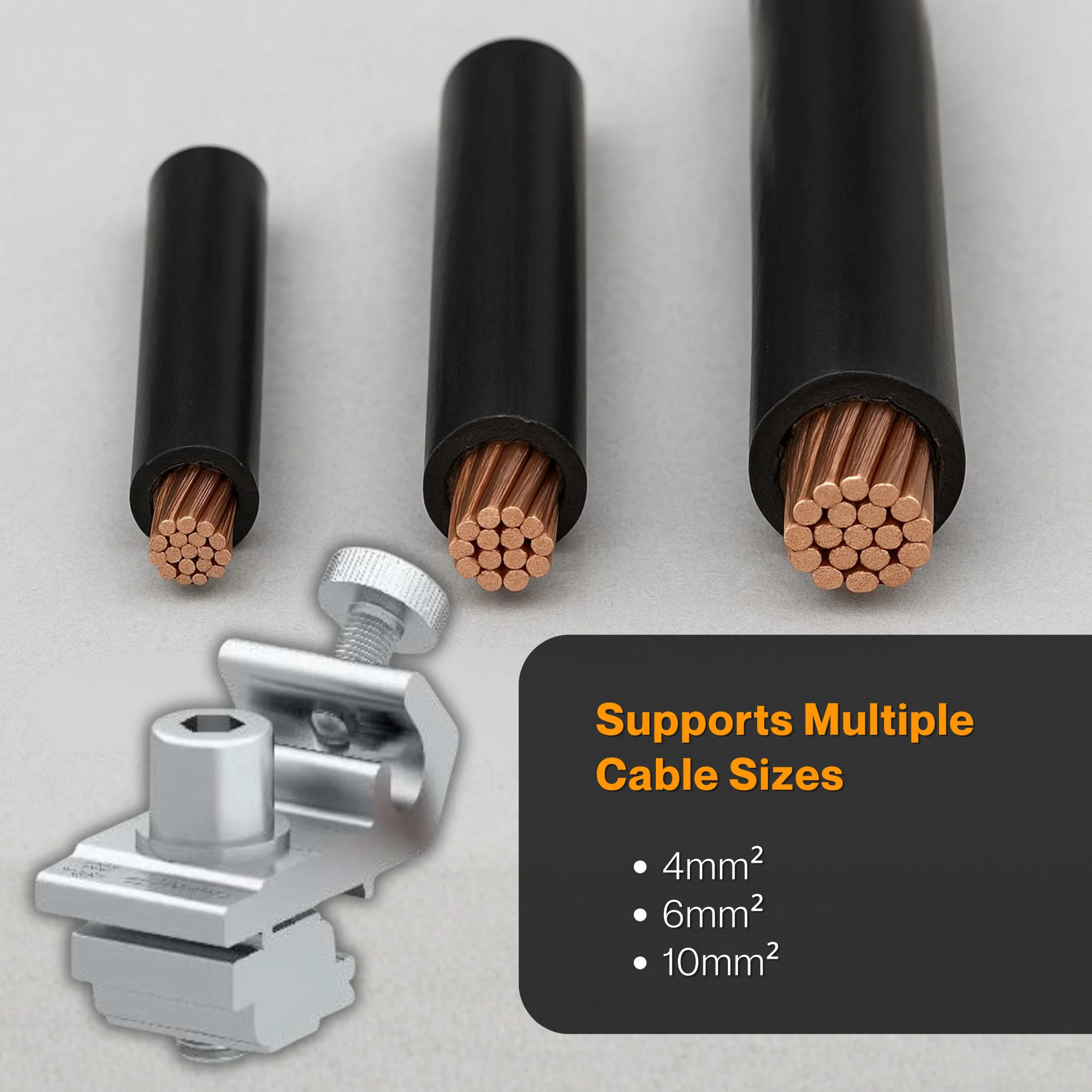

• Supports multiple cable sizes – 4mm², 6mm², and 10mm²

---

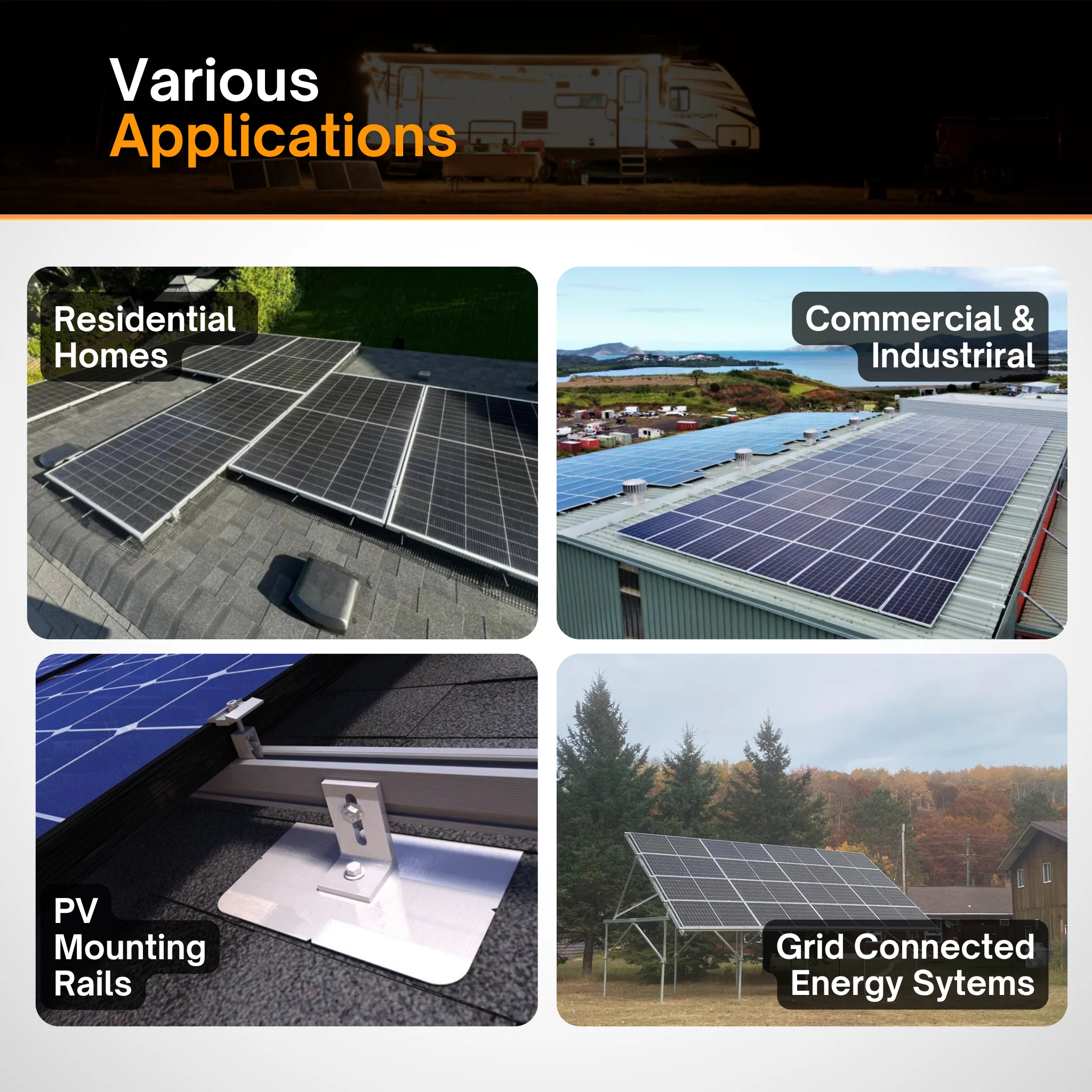

Applications

• Solar panel grounding systems

• PV racking and mounting structures

• Residential and commercial solar installations

• Utility-scale solar farms

• Renewable energy and off-grid systems

---

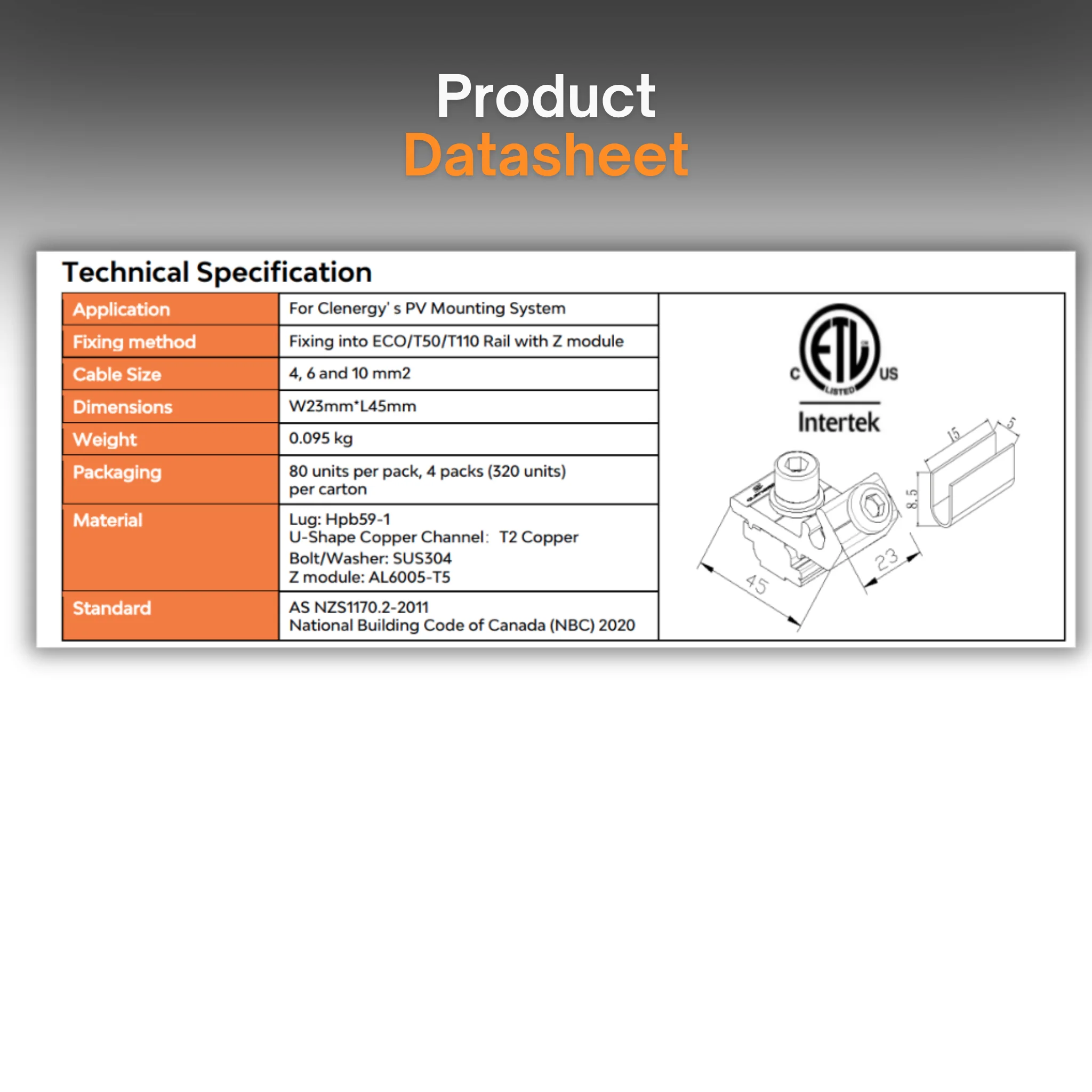

Technical Specifications
