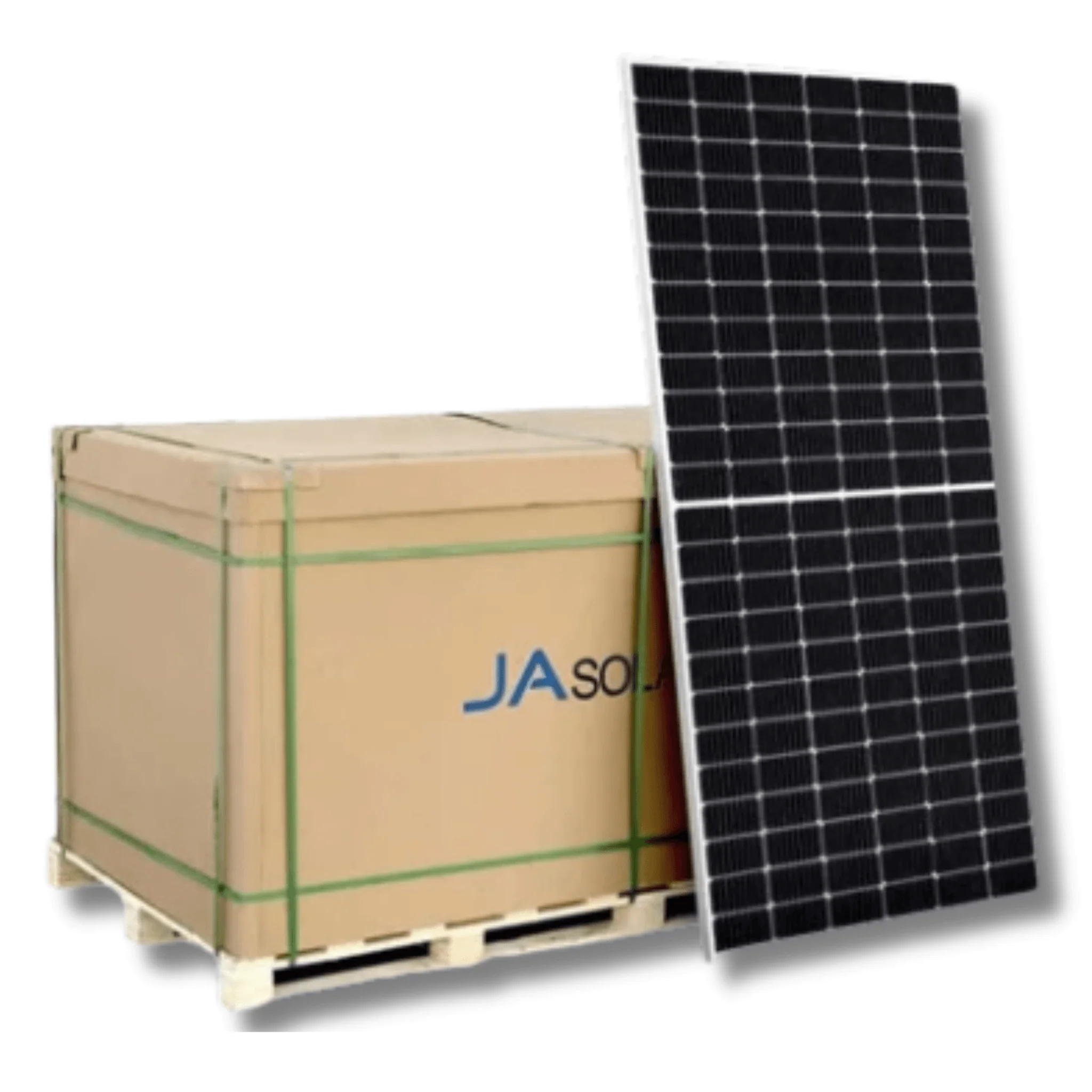

JA Solar 550w Bi-facial Solar Panel - CSA approved
**NOTE: All solar panels over 200w must be purchased in quantities of 2 or more for adequate protection during shipping. Alternatively, in-store pickup can be arranged for single-panel orders.**

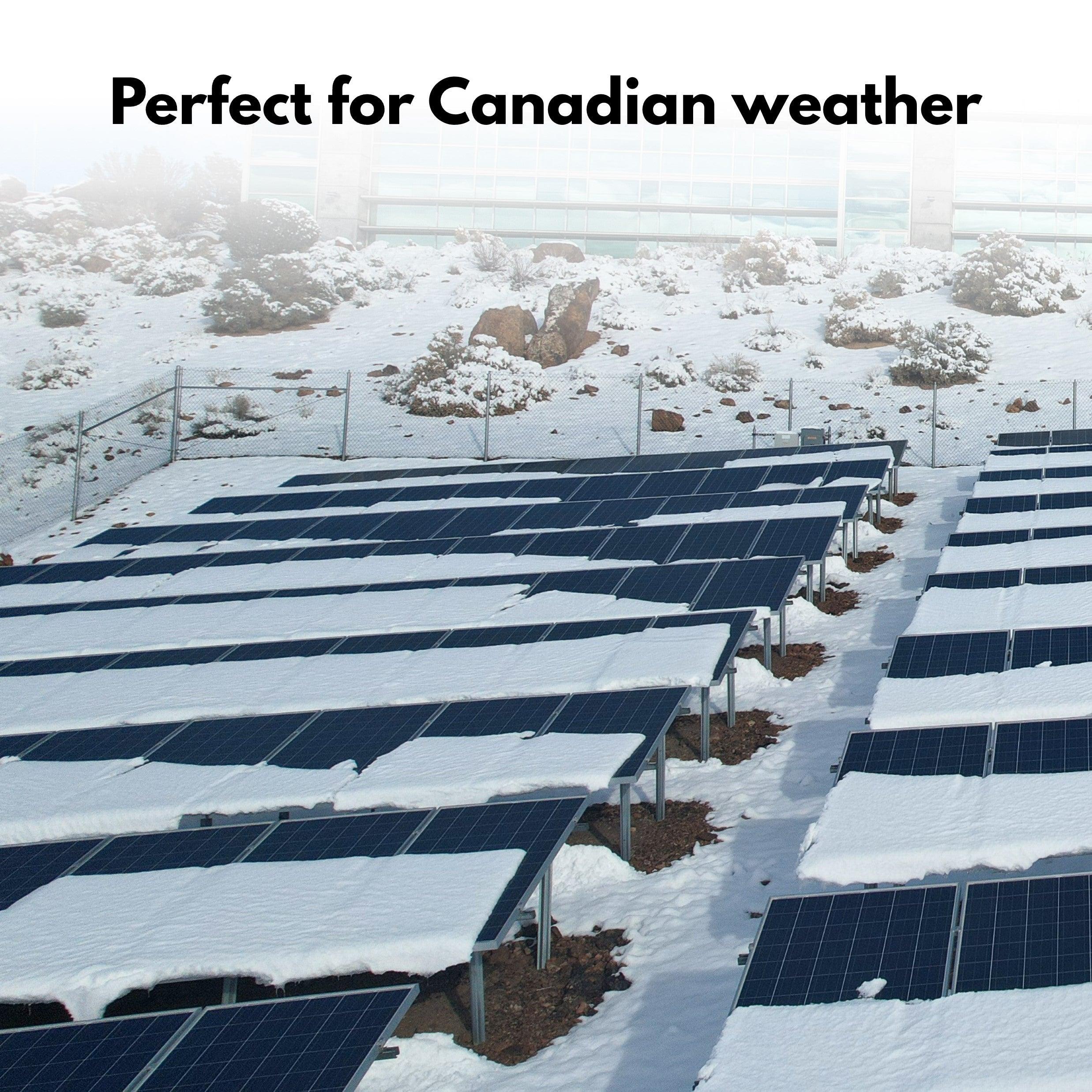

CSA approved for installation in Canada

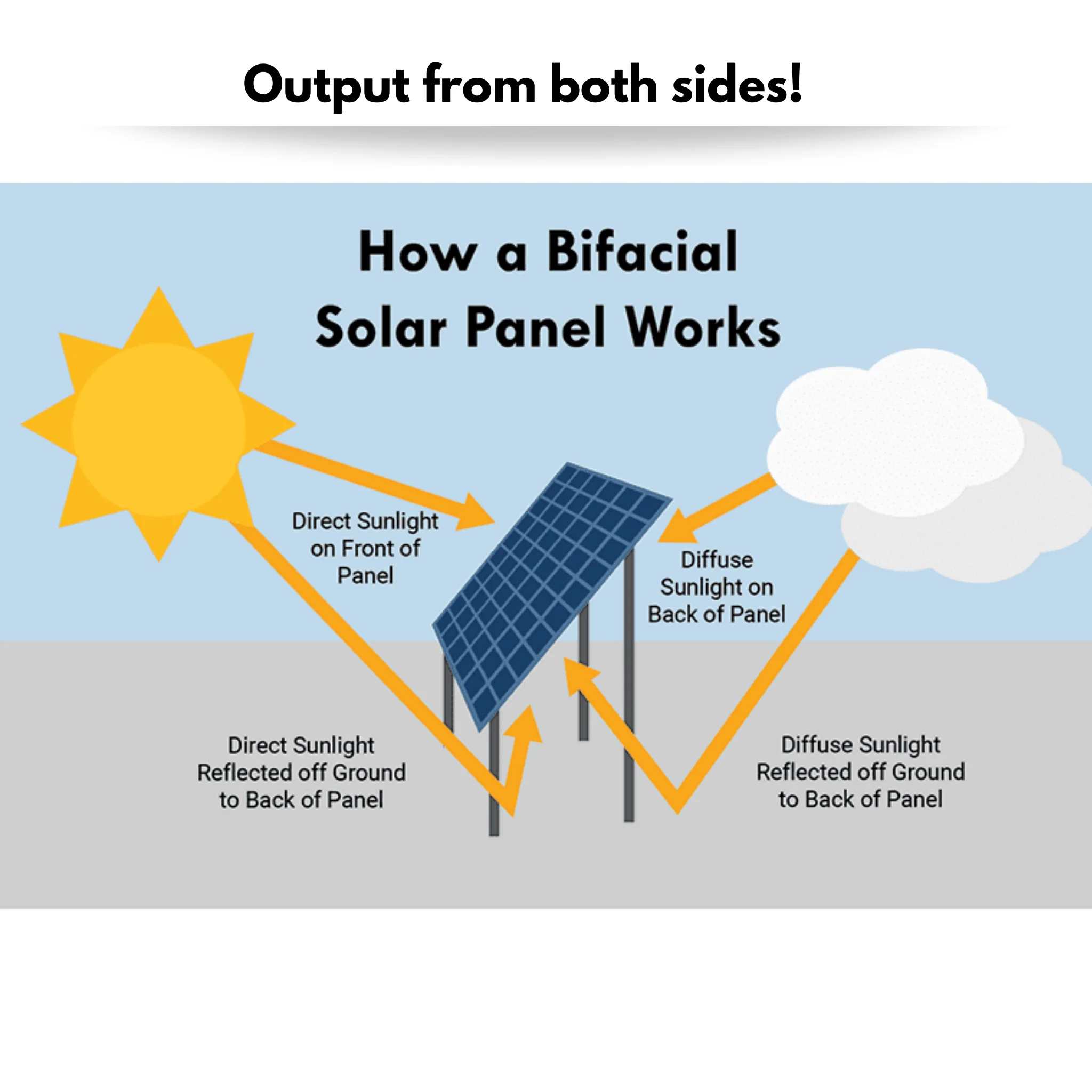

Assembled with MBB bi-facial PERCIUM cells and half-cell configuration, these double glass modules have the capability of converting the incident light from rear side together with the front side into electricity, providing higher output power. lower temperature coefficient, less shading loss, as well as enhanced tolerance for mechanical loading.
Specifications:
- Cell: Mono
- Weight: 31.8kg

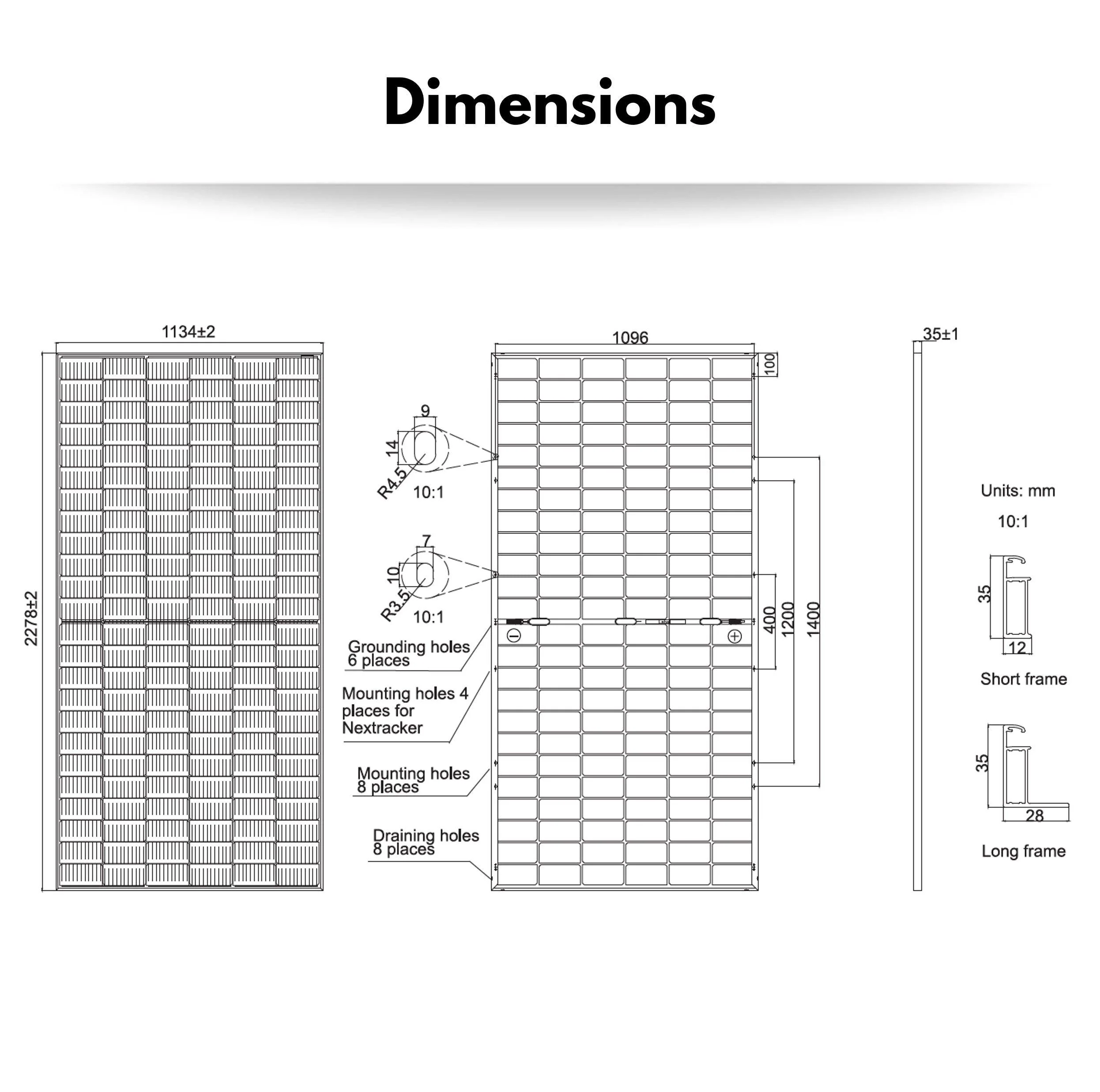

- Dimensions: 2278mm x 1134mm x 35mm
- Cable Cross Section Size: 4mm2 (IEC), 12 AWG (UL)
- No. of Cells: 144 (6x24)
- Junction Box: IP68, 3 diodes
- Connector: QC 4. 10-35
- Cable Length - Portrait: 300mm/400mm
- Cable Length - Landscape: 1300mm/1300mm
- Front Glass/Black Glass: 2.0mm/2.0mm
Electrical Parameters at STC:
- Rated Maximum Power [W]: 550
- Open Circuit Voltage [V]: 49.90
- Maximum Power Voltage [V]: 41.96
- Short Circuit Current [A]: 14.00
- Maximum Power Current [A]: 13.1
- Module Efficiency [%]: 21.3
Original: $491,000.00
-70%$491,000.00
$147,300.00More Images
JA Solar 550w Bi-facial Solar Panel - CSA approved
**NOTE: All solar panels over 200w must be purchased in quantities of 2 or more for adequate protection during shipping. Alternatively, in-store pickup can be arranged for single-panel orders.**
CSA approved for installation in Canada
Assembled with MBB bi-facial PERCIUM cells and half-cell configuration, these double glass modules have the capability of converting the incident light from rear side together with the front side into electricity, providing higher output power. lower temperature coefficient, less shading loss, as well as enhanced tolerance for mechanical loading.
Specifications:
- Cell: Mono
- Weight: 31.8kg
- Dimensions: 2278mm x 1134mm x 35mm
- Cable Cross Section Size: 4mm2 (IEC), 12 AWG (UL)
- No. of Cells: 144 (6x24)
- Junction Box: IP68, 3 diodes
- Connector: QC 4. 10-35
- Cable Length - Portrait: 300mm/400mm
- Cable Length - Landscape: 1300mm/1300mm
- Front Glass/Black Glass: 2.0mm/2.0mm
Electrical Parameters at STC:
- Rated Maximum Power [W]: 550
- Open Circuit Voltage [V]: 49.90
- Maximum Power Voltage [V]: 41.96
- Short Circuit Current [A]: 14.00
- Maximum Power Current [A]: 13.1
- Module Efficiency [%]: 21.3
