Jinko 405W Bifacial - JKM405M-72HL-TV
HomeStore

Jinko 405W Bifacial - JKM405M-72HL-TV

Jinko 405W Bifacial - JKM405M-72HL-TV

The Jinko Eagle 78TR G4b JK03 module is a high-performance solar panel designed to maximize energy generation. It incorporates bifacial cells and TR (Tiling Ribbon) technology to deliver exceptional efficiency and power output.

The module's bifacial cells allow it to generate electricity from both the front and back sides, capturing sunlight reflected off surrounding surfaces and increasing overall energy production. Additionally, the TR technology minimizes white space between cells, resulting in a more compact arrangement and higher power density. As a result, the Jinko Eagle 78TR G4b JK03 module can deliver an impressive power rating of up to 465W, ensuring optimal energy generation and a strong return on investment for solar power systems.

With its advanced features and robust construction, the Jinko Eagle 78TR G4b JK03 module offers exceptional performance, durability, and reliability. It is suitable for various applications, including residential, commercial, and utility-scale installations. By harnessing the power of the sun more efficiently, this module contributes to a greener future and reduces dependence on traditional energy sources.

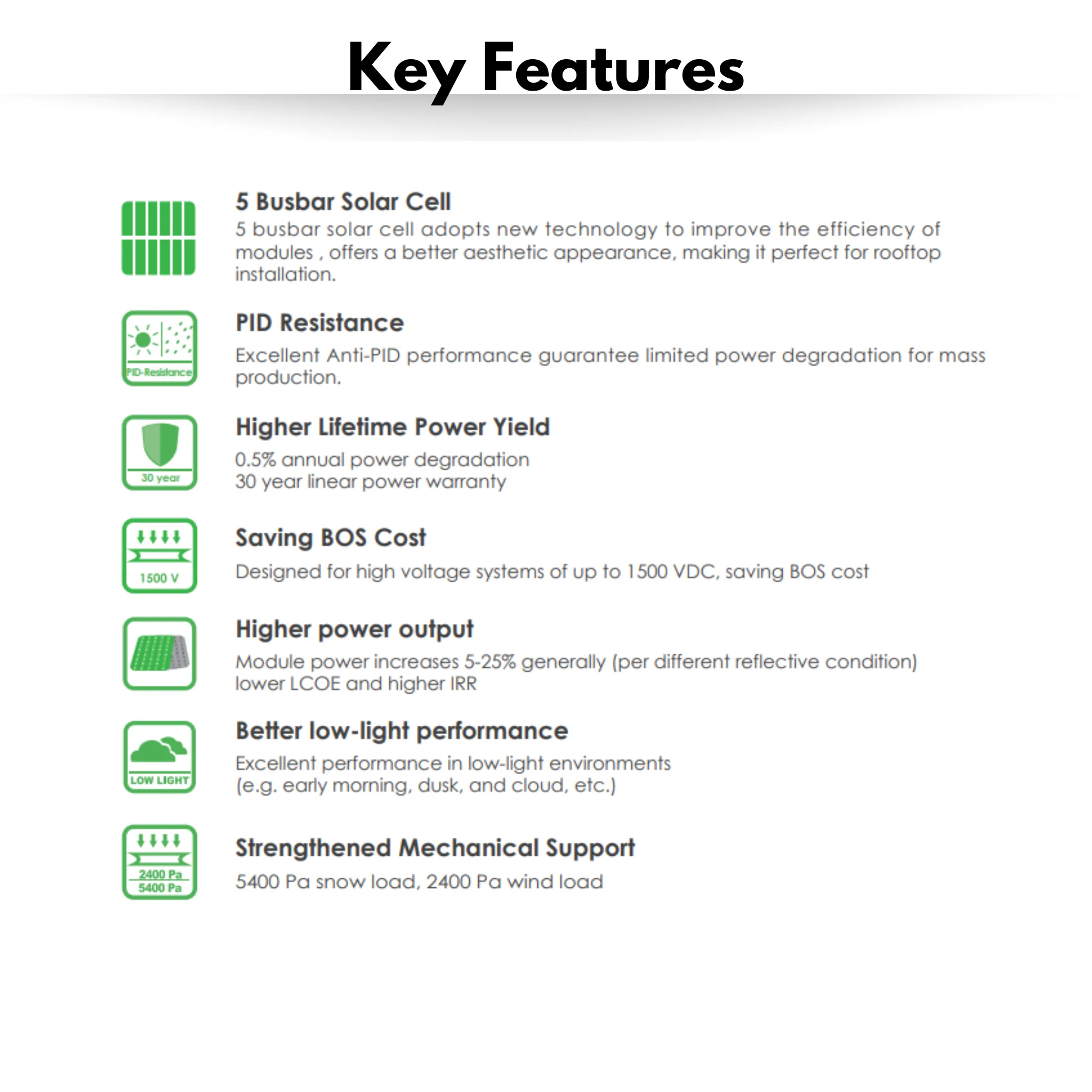

Key Features

  • 405W
  • 144 split cell
  • Bifacial
  • Silver frame
  • Clear/transparent backsheet
  • 40mm frame
  • 400mm cables

Specs

  • Manufacturer Part Number: JKM405M-72HL-TV
  • Maker: Jinko Solar
  • Watt: 405
  • Number of cells: 144 (72)
  • Cell Type: Bifacial
  • Backsheet Color: Clear
  • Frame Color: Silver
  • Voltage (Vmp): 40.19 Volt
  • Voltage (Voc): 48.45 Volt
  • Current (Imp): 10.08 Amp
  • Current (Isc): 10.42 Amp
  • Max. Series Fuse Rating: 25 Amp

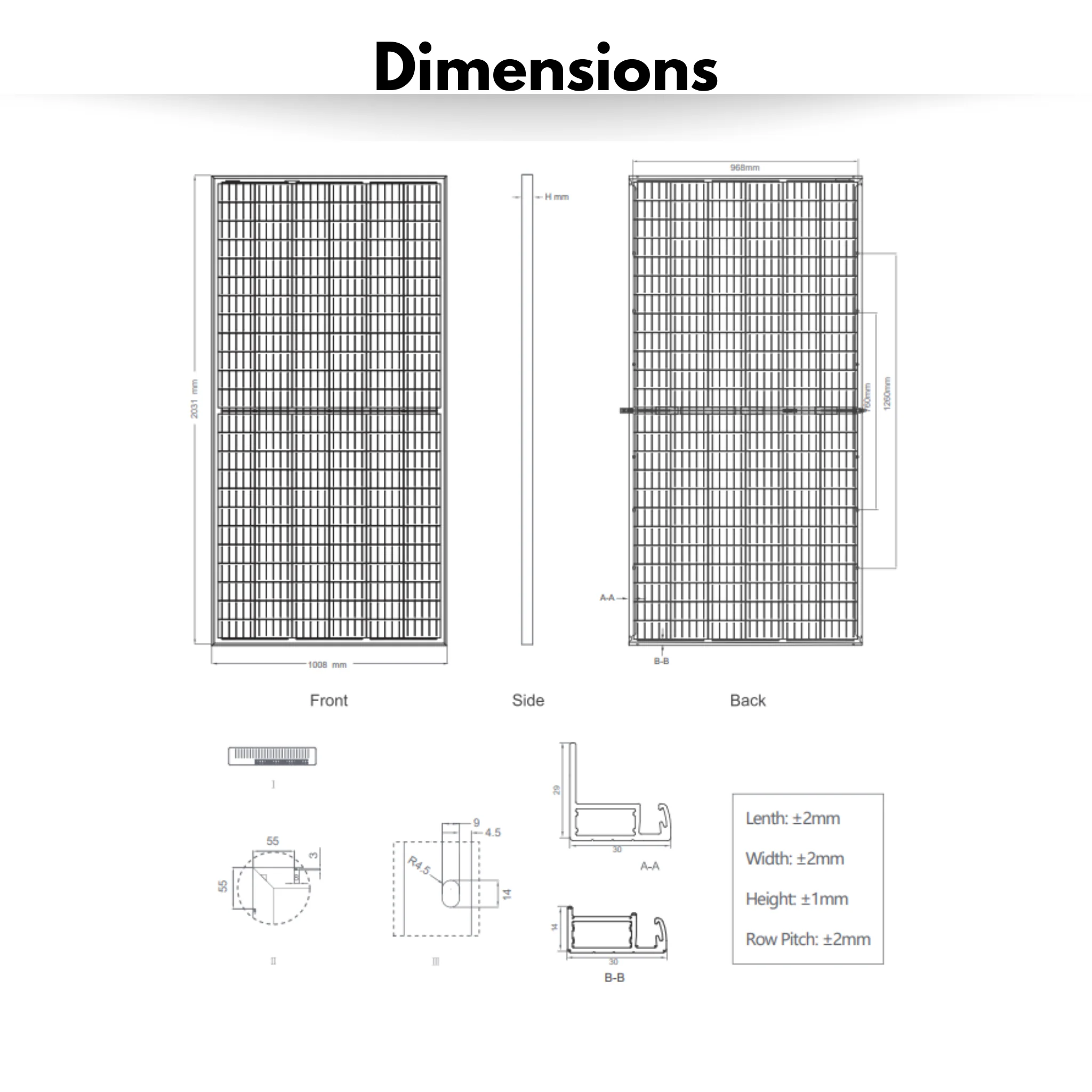

  • Dimensions: 79.96 x 39.69 x 1.57" (203.1 x 101.8 x 4.0 cm)
  • Shipping Weight: 51.3 lb
  • Pallet Qty: 27

30 year linear power warranty

Downloads

$247.50

Original: $825.00

-70%
Jinko 405W Bifacial - JKM405M-72HL-TV

$825.00

$247.50

More Images

Jinko 405W Bifacial - JKM405M-72HL-TV - Image 2
Jinko 405W Bifacial - JKM405M-72HL-TV - Image 3
Jinko 405W Bifacial - JKM405M-72HL-TV - Image 4
Jinko 405W Bifacial - JKM405M-72HL-TV - Image 5
Jinko 405W Bifacial - JKM405M-72HL-TV - Image 6
Jinko 405W Bifacial - JKM405M-72HL-TV - Image 7

Jinko 405W Bifacial - JKM405M-72HL-TV

The Jinko Eagle 78TR G4b JK03 module is a high-performance solar panel designed to maximize energy generation. It incorporates bifacial cells and TR (Tiling Ribbon) technology to deliver exceptional efficiency and power output.

The module's bifacial cells allow it to generate electricity from both the front and back sides, capturing sunlight reflected off surrounding surfaces and increasing overall energy production. Additionally, the TR technology minimizes white space between cells, resulting in a more compact arrangement and higher power density. As a result, the Jinko Eagle 78TR G4b JK03 module can deliver an impressive power rating of up to 465W, ensuring optimal energy generation and a strong return on investment for solar power systems.

With its advanced features and robust construction, the Jinko Eagle 78TR G4b JK03 module offers exceptional performance, durability, and reliability. It is suitable for various applications, including residential, commercial, and utility-scale installations. By harnessing the power of the sun more efficiently, this module contributes to a greener future and reduces dependence on traditional energy sources.

Key Features

  • 405W
  • 144 split cell
  • Bifacial
  • Silver frame
  • Clear/transparent backsheet
  • 40mm frame
  • 400mm cables

Specs

  • Manufacturer Part Number: JKM405M-72HL-TV
  • Maker: Jinko Solar
  • Watt: 405
  • Number of cells: 144 (72)
  • Cell Type: Bifacial
  • Backsheet Color: Clear
  • Frame Color: Silver
  • Voltage (Vmp): 40.19 Volt
  • Voltage (Voc): 48.45 Volt
  • Current (Imp): 10.08 Amp
  • Current (Isc): 10.42 Amp
  • Max. Series Fuse Rating: 25 Amp
  • Dimensions: 79.96 x 39.69 x 1.57" (203.1 x 101.8 x 4.0 cm)
  • Shipping Weight: 51.3 lb
  • Pallet Qty: 27

30 year linear power warranty

Downloads

Product Information

Shipping & Returns

Description

The Jinko Eagle 78TR G4b JK03 module is a high-performance solar panel designed to maximize energy generation. It incorporates bifacial cells and TR (Tiling Ribbon) technology to deliver exceptional efficiency and power output.

The module's bifacial cells allow it to generate electricity from both the front and back sides, capturing sunlight reflected off surrounding surfaces and increasing overall energy production. Additionally, the TR technology minimizes white space between cells, resulting in a more compact arrangement and higher power density. As a result, the Jinko Eagle 78TR G4b JK03 module can deliver an impressive power rating of up to 465W, ensuring optimal energy generation and a strong return on investment for solar power systems.

With its advanced features and robust construction, the Jinko Eagle 78TR G4b JK03 module offers exceptional performance, durability, and reliability. It is suitable for various applications, including residential, commercial, and utility-scale installations. By harnessing the power of the sun more efficiently, this module contributes to a greener future and reduces dependence on traditional energy sources.

Key Features

  • 405W
  • 144 split cell
  • Bifacial
  • Silver frame
  • Clear/transparent backsheet
  • 40mm frame
  • 400mm cables

Specs

  • Manufacturer Part Number: JKM405M-72HL-TV
  • Maker: Jinko Solar
  • Watt: 405
  • Number of cells: 144 (72)
  • Cell Type: Bifacial
  • Backsheet Color: Clear
  • Frame Color: Silver
  • Voltage (Vmp): 40.19 Volt
  • Voltage (Voc): 48.45 Volt
  • Current (Imp): 10.08 Amp
  • Current (Isc): 10.42 Amp
  • Max. Series Fuse Rating: 25 Amp
  • Dimensions: 79.96 x 39.69 x 1.57" (203.1 x 101.8 x 4.0 cm)
  • Shipping Weight: 51.3 lb
  • Pallet Qty: 27

30 year linear power warranty

Downloads

Data sheet
Installation manual
Warranty
