Maple Leaf Northern Fox ECS4000 High Voltage Slave Battery | 3.97kWh Scalable Storage | 90% DoD | LiFePO4 | IP65 Outdoor Rated | UL & UN38.3 Certified
Maple Leaf Northern Fox ECS4000 High Voltage Slave Battery | 3.97kWh Scalable Storage | 90% DoD | LiFePO4 | IP65 Outdoor Rated | UL & UN38.3 Certified
Downloads:
The Maple Leaf Northern Fox ECS4000 is a high-performance, 3.97kWh modular battery storage system designed for scalability and efficiency. With a plug-and-play installation and the ability to expand up to 27.8 kWh, this system is ideal for residential and commercial energy storage applications. Featuring a robust LiFePO4 prismatic cell design, high depth of discharge, and wide voltage compatibility, the ECS4000 is built for reliability and long-term performance.
Key Features
-

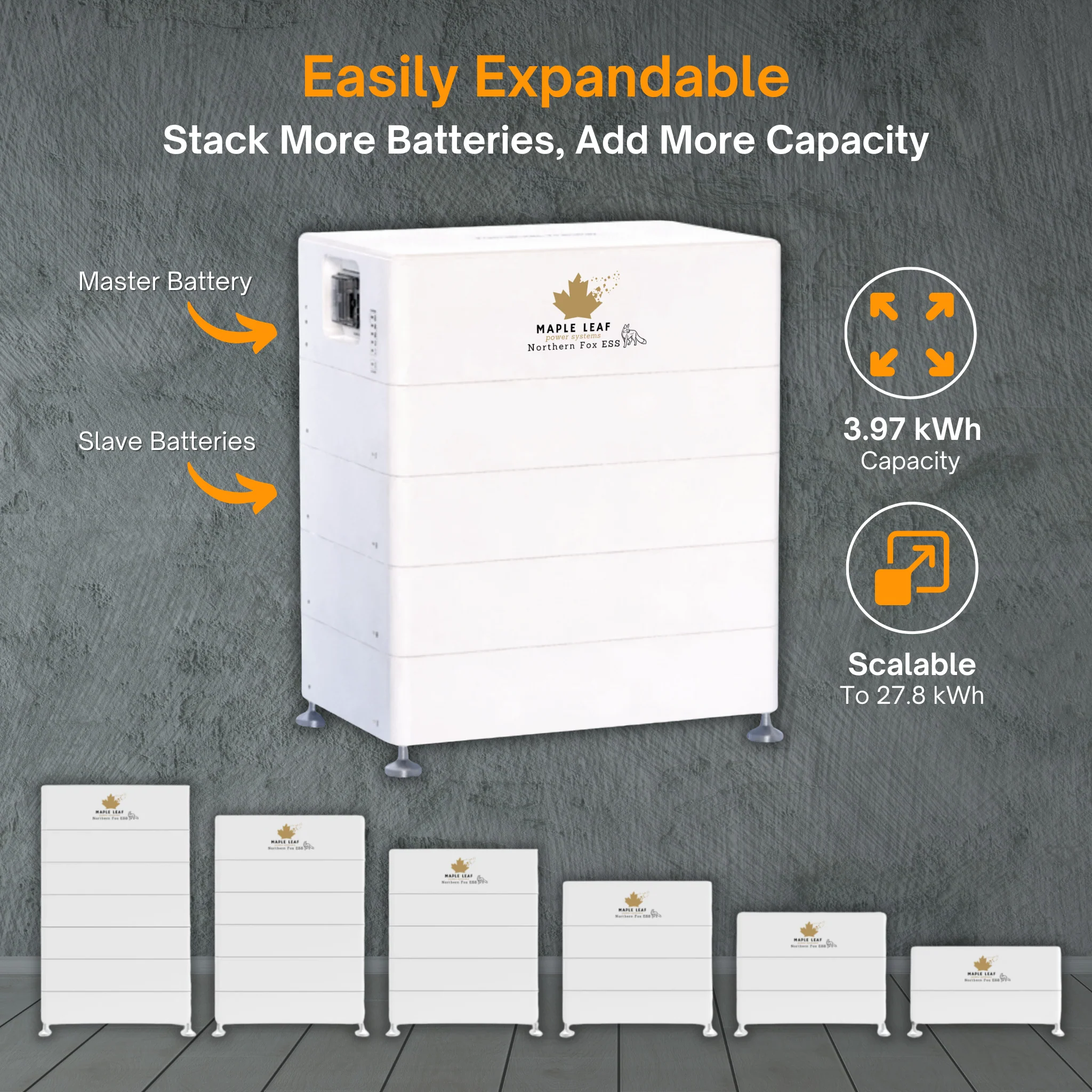

Modular Scalability: Connect up to 6 CS4000 slave modules (7 modules total with 1 master battery + 6 slave batteries), expanding system capacity up to 27.8 kWh total storage.
- High Efficiency: Achieves over 95% round-trip efficiency for maximum energy utilization.
- 90% Depth of Discharge (DoD): Maximizes usable battery capacity for extended performance.
- Wide Operating Voltage: Ranges from 97.2 V to 459.9 V, providing flexibility for different energy needs.
- Easy Installation: Plug-and-play design saves time and simplifies setup.
- CAN Communication: Ensures seamless integration with compatible inverters and energy management systems.
- Durable & Weatherproof: IP65 weatherproof design w/ integrated battery heater for cold climate conditions.
- Reliable Lithium Iron Phosphate (LiFePO4) Chemistry: Provides enhanced safety, longevity, and thermal stability.
- Certified for Safety & Compliance: UL1973, UL9540, UL9540A, and UN38.3 certified.
- Warranty: 12.5-year manufacturer warranty +2.5 years extended coverage through Maple Leaf Power Systems - 15yr total warranty.
Product Specifications
Electrical Characteristics
- Battery Type: Lithium Iron Phosphate (LiFePO4)
- Nominal Voltage: 115.2 V – 403.2 V (Model Dependent)
- Operating Voltage Range: 97.2 V – 459.9 V
- Nominal Capacity: 3.97 kWh – 27.8 kWh (Expandable)
- Max Charge/Discharge Current: 50 A
- Peak Discharge Current (60s): 65 A
- Round-Trip Efficiency: >95%
- Depth of Discharge (DoD): 90%
- Communication: CAN
- Display: LED indicators (1 on CS module, 6 on CM module)
Operating Conditions
- Installation Location: Indoor/Outdoor (Stand-Mounted)
- Operating Temperature: -10°C to 55°C (14°F to 131°F)
- Storage Temperature: -20°C to 55°C (-4°F to 131°F)
- Cooling Method: Natural Convection
- Humidity Tolerance: 0% to 100% (No Condensation)
- Maximum Operating Altitude: 2,000 meters (6,560 feet)
Mechanical Characteristics
- Ingress Protection: IP65 (Dustproof and Water-resistant)
- Certifications: UL1973, UL9540, UL9540A, UN38.3
- Standard Warranty: 12.5-year manufacturer warranty +2.5 years extended coverage through Maple Leaf Power Systems - 15yr total warranty.

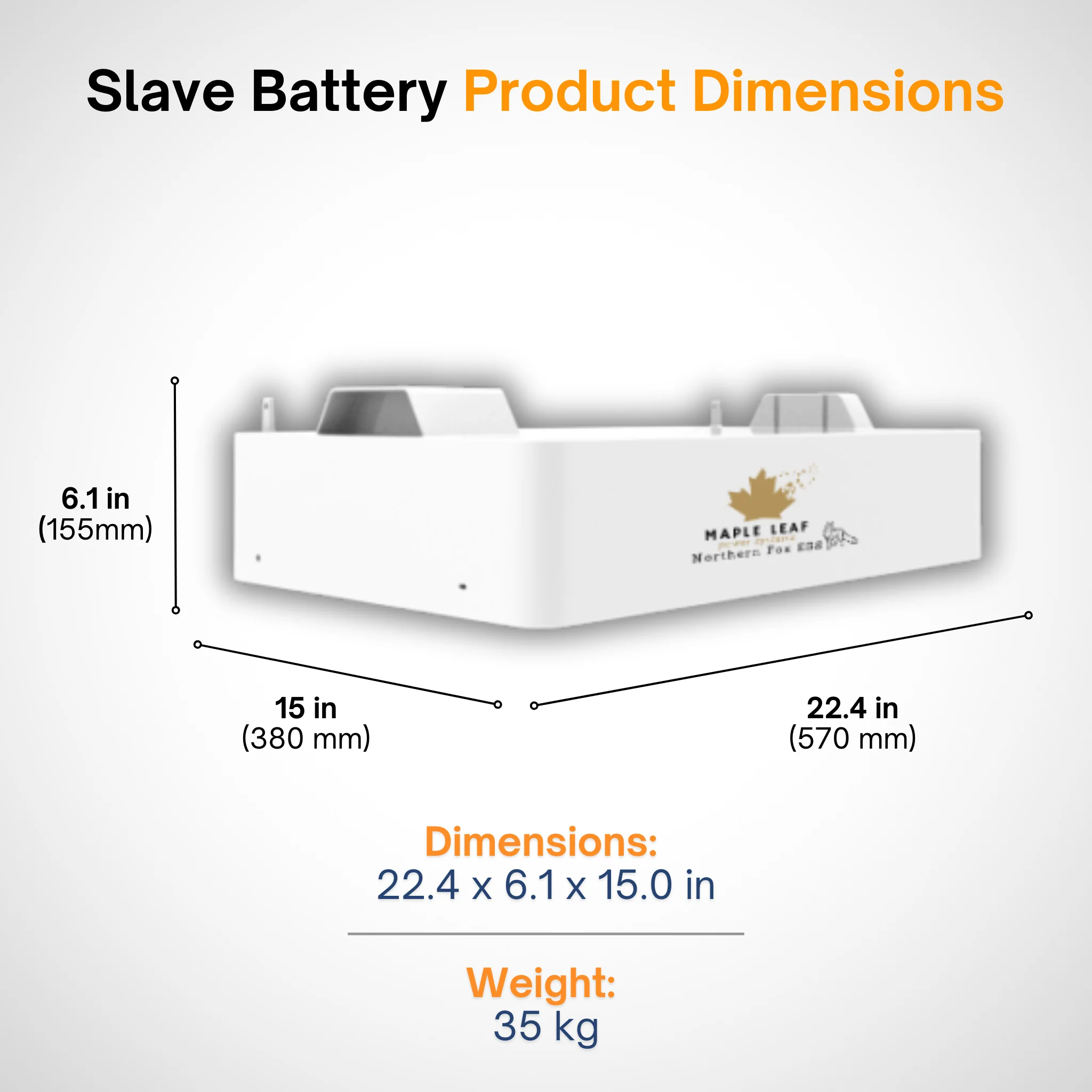

Dimensions & Weight
| Model | Dimensions (W x H x D) mm | Dimensions (W x H x D) inches |
|---|---|---|
| ECS4000-H2 | 570 x 155 x 380 | 22.4 x 6.1 x 15.0 |
